Remove/install alternator (Engine 156) - AR15.40-P-5032GZS

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 164, 251

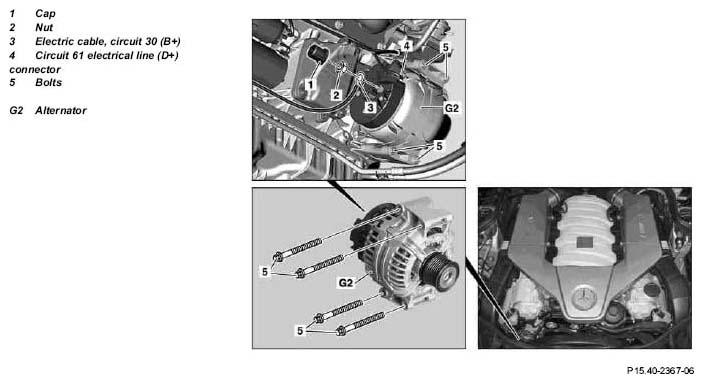

Fig 1: Identifying Alternator Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect ground line from battery	Insulate clamp of ground line as a protection against unintentional contact of dismounted ground line with ground point of battery. Vehicles with Keyless Go, code 889: Switch engine off, remove Keyless-Go cards from the vehicle and store outside of the transmitter range.
		Model 164	AR54.10-P-0003GZ
		Model 251	AR54.10-P-0003RT
	Notes on battery		AH54.10-P-0001-01A
2	Open engine hood	Model 164	AR88.40-P-1000GZ
		Model 251	AR88.40-P-1000RT
3	Remove front engine cover	Do not tilt front engine cover, but lift upwards vertically otherwise the retaining lugs can break off.
4	Remove right and left intake air duct
5	Unclip engine wiring harness clip on alternator (G2)
6	Raise vehicle with lifting platform	Model 164	AR00.60-P-1000GZ
		Model 251	AR00.60-P-1000RT
7	Remove lower engine compartment paneling	Model 164	AR61.20-P-1105GZ
		Model 251	AR61.20-P-1105RT
8	Remove poly-V-belt		AR13.22-P-1202GZS
9	Drain coolant from radiator		AR20.00-P-1142GZS
10	Remove lower coolant hose on water pump	For model 251 the coolant hose must also be disconnected from the expansion reservoir.
11	Disconnect oil heat exchanger oil line at flange connection	Check engine oil level.
12	Remove cap (1) and disconnect circuit 30 electrical line (B+) (3) at alternator (G2) by unscrewing nut (2).		*BA15.40-P-1002-01P
13	Remove electrical line plug of circuit 61 (D+) (4) from the alternator (G2)
14	Remove bolts (5) on alternator (G2)	Installation: Screw ground strap back on again.
			*BA15.40-P-1001-01P
15	Take generator (G2) down and out
16	Install in the reverse order
17	Perform basic programming	Model 164	AR00.19-P-0200GZ
		Model 251	AR00.19-P-0200RT

ALTERNATOR

Number	Designation			Engine 156
BA15.40-P-1001-01P	Bolt, alternator to timing case	M8X90	Nm	20
BA15.40-P-1002-01P	Nut, circuit B+ to alternator		Nm	18
