ME-SFI ignition system - function (Engine 113) - GF15.12-P-0001BK

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.967 in MODEL 219

ENGINE 113.964 in MODEL 164.1

ENGINE 113.971 in MODEL 251

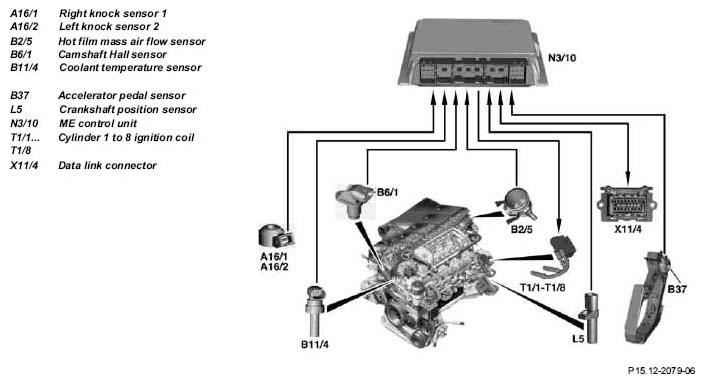

Fig 1: ME-SFI Ignition System Function Diagram
G05259878Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

When the crankshaft is rotating, an alternating voltage is generated in the crankshaft position sensor by the teeth of the driven plate.

During this operation, each tooth generates an alternating voltage signal. No voltage is generated as a result of the gap created by 2 missing teeth. The ME-SFI control unit detects the TDC position of the crankshaft with the 2nd negative slope after the gap.

If the signal from the camshaft Hall sensor is at 0 V ("low") at this moment, the ME control unit processes this in order to detect ignition TDC. This is used for actuating the ignition coils and fuel injection valves.

The ME control unit actuates the ignition coils. When the ignition coil primary circuit is turned off, high-voltage is generated via induction.

High-voltage is distributed statically and directly from ignition coils to spark plugs.

Advantages are

The ME-SFI control unit essentially analyzes the following signals for determining the ignition angle:

The ignition angle can only be tested with the STAR DIAGNOSIS.

The engine torque can be changed rapidly via the ignition angle.

The following functions require adaptation of ignition timing.

Catalytic converter heating-up

To bring the catalytic convertor quickly to operating temperature, the ignition angle is constantly adjusted for approx. 20 seconds to "Late" when the coolant temperature at start is between 15°C and 40°C and when with automatic transmission, selector lever position P or N is selected.

Idling

To assist the idle speed control, the ignition angle can be retarded by as much as 36° crank angle or advanced by as much as 20° crank angle.

Inertia fuel shutoff

The ignition angle is briefly retarded when combustion is resumed (fuel injection valves actuated) in order to prevent a sudden increase in torque.

AC system

Shortly before the coolant compressor is switched on, the engine torque increases. In doing so, the ignition angle is adjusted for a short time to "Early" to support idle speed control.

Transmission overload protection

In order to protect the shift elements of the automatic transmission from excessive thermal stresses during powershifts, the ignition angle is briefly retarded during the gearshift and the engine torque is thus reduced.

The ME control unit is supplied with a signal for this purpose by the transmission control unit over the CAN databus.

ESP control mode

In order to reduce the engine torque as rapidly as possible in the ESP/ASR control mode, the ignition angle is retarded by the throttle valve actuator (opening angle reduced) before the commencement of the control cycle. The information flows from the ESP/ASR control unit over the CAN databus to the ME control unit.

Intake air temperature/coolant temperature

To prevent the knock angle at an air intake temperature over approx. 35°C or a coolant temperature over approx. 105°C, the ignition angle is adjusted to "Late" under load.

Anti-knock control (AKC)

During uncontrolled combustion (knocking) at one or several cylinders, the ignition angle is adjusted to "Late" at the knocking cylinders.

Component description for the engine electronics control unit GF07.61-P-6000BK
Component description for the knock sensor GF07.04-P-6030BK
Component description for the crankshaft position sensor GF07.04-P-6010BK
Component description for the camshaft Hall sensor GF07.04-P-6020BK
Component description for the coolant temperature sensor GF07.04-P-6040BK
Component description for the hot film MAF sensor GF07.07-P-6000BK
Component description for the spark plugs GF15.10-P-2000BK
Component description for the ignition coil GF15.10-P-2100BK
Component description for the accelerator pedal sensor GF30.20-P-2010BK
ME-SFI synchronization of fuel injection and firing order - function GF07.61-P-4009BK
ME engine speed signal - function GF07.61-P-3017BK
Anti-knock control - function GF15.12-P-4024BK
