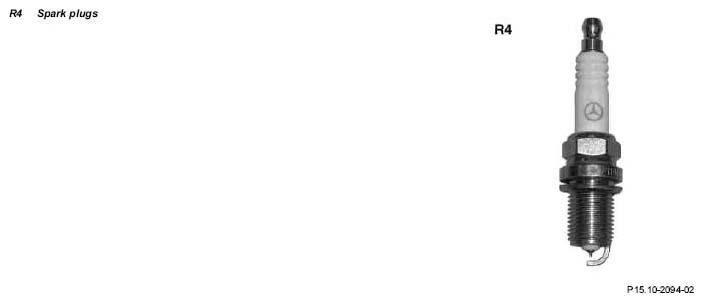

Spark plugs, description of components (Engine 113) - GF15.10-P-2000BK
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.967 in MODEL 219
ENGINE 113.964 in MODEL 164.1
ENGINE 113.971 in MODEL 251
Location
Two spark plugs per cylinder are fitted in the cylinder head
Task
The spark plugs ignite the suctioned and compressed fuel-air mixture due to arcing between the electrodes.
Function
The ignition voltage flows from the ignition lines of the ignition coils to the spark plugs and causes arcing in the air gap between the central electrode and ground electrode.
All spark plug characteristics are defined in the model formula for the specific manufacturer (e.g. heat rating, seat shape, thread, width across flats, electrode material, spark location).
