Removing/installing the engine cover - AR01.10-P-2405GZ (ML500)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

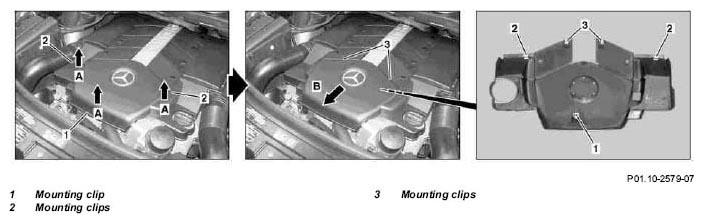

Fig 1: Identifying Engine Cover Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing/installing
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood		AR88.40-P-1000GZ
2	Unclip mounting clamps (1, 2) by raising the engine cover somewhat (arrows A)	When unclipping the engine cover just raise the it slightly in the area of the mounting clamps otherwise the cover could break.
3	Unclip fixing clips (1, 2) by pulling out the front engine cover slightly to the front (arrow B)
4	Remove engine cover
5	Install in reverse order
