Detach/attach connecting flange on intake manifold - AR09.20-P-1311AMG (ML63 AMG)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156
Shown on model 204.077
| Remove/install | |||
|---|---|---|---|
| 1 | Remove front and rear throttle valve actuator (M16/3, M16/4) | Check during the work procedure for absolute cleanliness. Engine damage will occur otherwise. |
AR07.61-P-1401AMG |

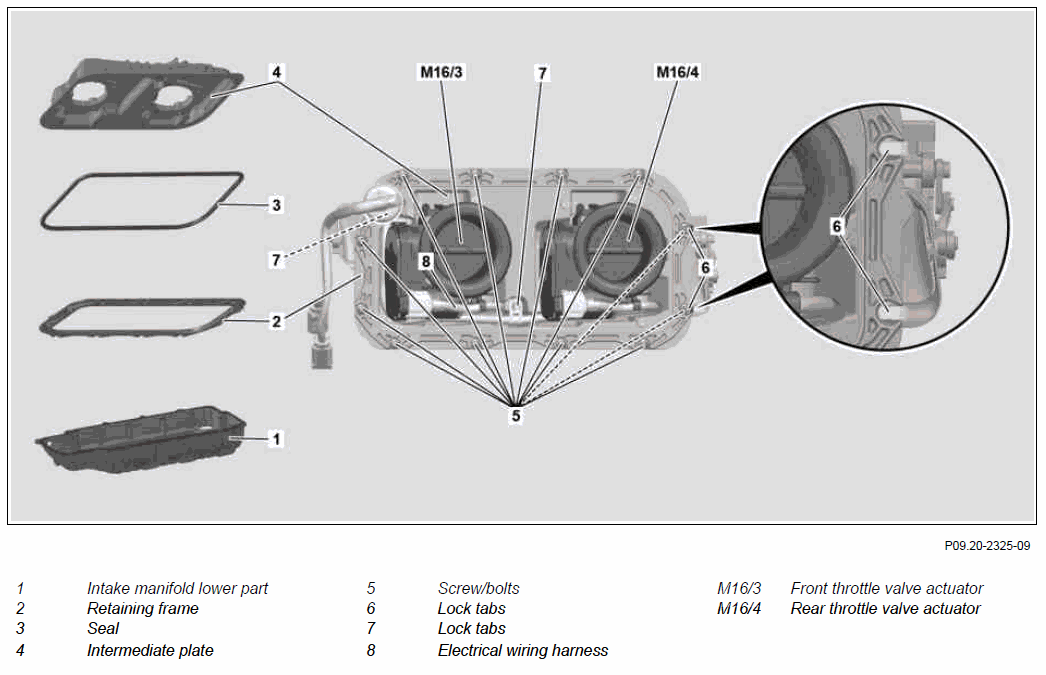

| 2 | Open lock tabs (7) and remove screw/bolts from wiring harness mount (8) | Screw/bolt, attachment of wiring harness to intermediate plate | *BA09.20-P-1006-01R |
| 3 | Detach electrical wiring harness (8) from intermediate plate (4) and set aside | Installation: Ensure that routing of lines is correct. | |
| 4 | Open lock tab (6) | Installation:
The screw/bolts (5) must be secured with lock tabs (6). Engine damage will occur otherwise. Installation: Lock tabs (6) must be replace after every opening. |
|
| 5 | Installation:
Screw in screw/bolts (5) by hand very carefully and lay on finger-tight. No compressed air tools may be used to remove and screw in the screw/bolts (5). The intake manifold will be damaged otherwise. Installation: Replace screws/bolts (5). |
||
| *BA09.20-P-1005-01R | |||
| 6 | Remove retaining frame (2) with seal (3) from intermediate plate (4) | Installation: Install new seal (3). | |
| 7 | Remove intermediate plate (4) from intake manifold upper part | ||
| 8 | Check intake manifold lower part (1) and intermediate plate (4) for external damage and replace if necessary | ||
| 9 | Check electrical wiring harness (8) for external damage and replace if necessary | ||
| 10 | Install in the reverse order |
INTAKE MANIFOLD
| Number | Designation | ENGINE 156 | |||
|---|---|---|---|---|---|
| BA09.20-P-1005-01R | Bolt, retaining frame for intermediate plate to intake manifold upper part | Initial installation | Nm | 9 | |
| Follow-up operations | Nm | 7 | |||
INTAKE MANIFOLD
| Number | Designation | ENGINE 156 | |
|---|---|---|---|
| BA09.20-P-1006-01R | Screw/bolt, attachment of wiring harness to intermediate plate | Nm | 9 |
