Remove/install bottom part of oil pan - AR01.45-P-7555GZ (ML500)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.964 in MODEL 164.175
MODIFICATION NOTES
| 11.7.06 | Bolt, stabilizer bar retaining clamp to bearing bracket | *BA32.20-P-1001-02L |
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |

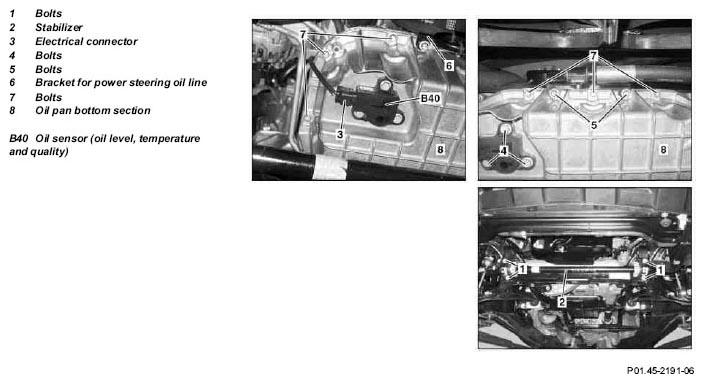

| Fig 2 | |||
| Notes on self-locking nuts and bolts | All models | AH00.00-N-0001-01A | |
| 1 | Raise vehicle | AR00.60-P-1000GZ | |
| 2 | Open engine hood and raise to vertical position | AR88.40-P-1000GZ | |
| 3 | Remove bottom engine compartment panel | AR61.20-P-1105GZ | |
| 4 | Drain engine oil, collect if necessary | *BA01.45-P-1003-01B | |
| *BF18.00-P-1001-01H | |||
| 5 | Unscrew bolts (1) on stabilizer bar (2) | ||
| *BA32.20-P-1001-02L | |||
| 6 | Disconnect electrical connector (3) at oil sensor (oil level, temperature and quality) (B40) | ||
| 7 | Remove bolts (4) and oil sensor (oil level, temperature and quality) (B40) | *BA18.40-P-1005-01B | |
| 8 | Remove bolts (5) on bracket for power steering oil line (6) | *BA46.30-P-1002-01H | |
| 9 | Remove bolts (7) on oil pan bottom section (8), remove oil pan bottom section (8) | ||
| Notes on sealant path for oil pan | AH01.45-P-0001-01GZ | ||
| Sealant | *BR00.45-Z-1013-01A | ||
| *BA01.45-P-1005-01B | |||
| 10 | Install in the reverse order | ||
| 11 | Read out fault memory and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnostic system | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 12 | Check for leaks with engine running |
FRONT AXLE STABILIZER BAR
| Number | Designation | Model 164.1/8 | |
|---|---|---|---|
| BA32.20-P-1001-02L | Bolt, stabilizer bar retaining clamp to bearing bracket | Nm | 180 |
OIL PAN
| Number | Designation | Engine 113.964 | ||
|---|---|---|---|---|
| BA01.45-P-1003-01B | Oil drain screw to oil pan | M14 | Nm | 30 |
| BA01.45-P-1005-01B | Oil pan bottom section bolt at oil pan upper section | Thread not pre-tapped | Nm | 14 |
| Thread pre-tapped | Nm | 10 | ||
OIL LEVEL/OIL PRESSURE SENSOR
| Number | Designation | Engine 113.964 | |
|---|---|---|---|
| BA18.40-P-1005-01B | Oil level sensor at oil pan bottom section | Nm | 10 |
POWER STEERING PUMP
| Number | Designation | Engine 113 in model 164, 251 | |
|---|---|---|---|
| BA46.30-P-1002-01H | Bolt, power steering pressure line bracket to engine oil pan | Nm | 10 |
ENGINE LUBRICATION
| Number | Designation | Engine 113.964/971 | ||
|---|---|---|---|---|
| BF18.00-P-1001-01H | Engine oil | Filling capacity with oil filter | Liters | 8.5 |
| Filling capacity without oil filter | Liters | - | ||
| Specifications for Operating Fluids | Sheet | BB00.40-P-0229-01A | ||
| Sheet | BB00.40-P-0229-03A | |||
| Sheet | BB00.40-P-0229-05A | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Sealant | A 003 989 98 20 |
