Remove/install left engine support - AR22.10-P-4350GZ (ML500)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

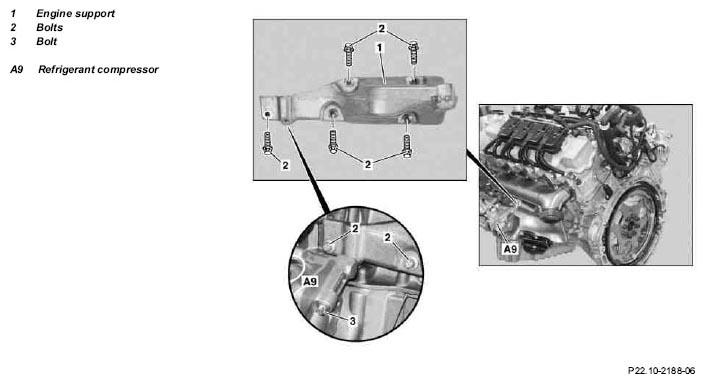

Fig 1: Identifying Left Engine Support Components
G05259961Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
NOTES Notes on self-locking nuts and bolts All models AH00.00-N-0001-01A
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
1 Open engine hood and raise to vertical position   AR88.40-P-1000GZ
DANGER Risk of death  caused by vehicle slipping or toppling off the lifting platform. Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
2 Raise vehicle with lifting platform   AR00.60-P-1000GZ
3 Partly remove poly-V belt   AR13.22-P-1202GZ
4 Dismantle engine mount at left engine support (1).   AR22.10-P-1100GZ
    TORQUE SPECIFICATION *BA22.10-P-1001-03G
    TORQUE SPECIFICATION *BA22.10-P-1002-03G
    SPECIAL TOOL Tool kit Figure
    SPECIAL TOOL Connection piece Figure
    SPECIAL TOOL Four-point drive Figure
5 Partly remove refrigerant compressor (A9) IMPORTANT The refrigerant compressor (A9) is secured to the engine support (1) with a bolt (3). AR83.55-P-5300GZ
    TORQUE SPECIFICATION *BA83.55-P-1001-01R
6 Unscrew bolts (2) and remove engine support (1) NOTESInstallation:  Bolts must be replaced, because the connection can loosen or bolts may shear off if reused.
    TORQUE SPECIFICATION *BA22.10-P-1003-01S
7 Take out engine support (1)
8 Install in the reverse order
ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation Engine 113.964 in model 164
BA22.10-P-1003-01S Bolt, engine support to crankcase Stage 1 Nm 20
Stage 2 ∠° 90
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 164
BA22.10-P-1001-03G Bolt, front engine mount to front axle carrier Nm 53
BA22.10-P-1002-03G Bolt, front engine mount to engine support Nm 53
REFRIGERANT COMPRESSOR

Number Designation Model 164.1/8
BA83.55-P-1001-01R Bolt, refrigerant compressor to timing case and left engine support Nm 20
Fig 2: Identifying Tool Kit (000 589 10 99 00)
G05259962Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Connecting Piece (210 589 00 16 00)
G05259963Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Four-Point Drive (210 589 01 16 00)
G05259964Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
