Remove/install electric fan - AR20.40-P-5000GZ
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.964 in MODEL 164.175
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000GZ | |
| 2 | Remove front engine cover | AR01.10-P-2405GZ | |
| 3 | Remove left and right suction fan duct | ||
| 4 | Remove upper radiator crossmember | AR62.30-P-2300GZ | |

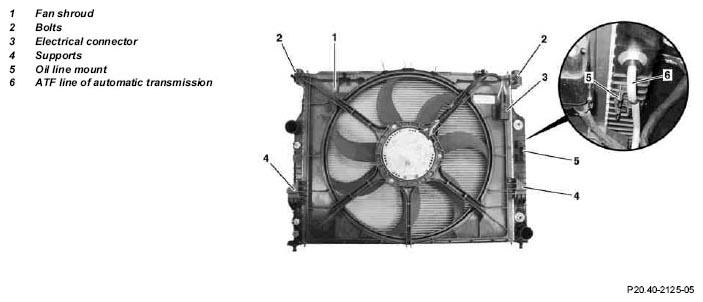

| 5 | Disconnect electrical connector (3) at fan shroud (1) | ||
| 6 | Lift out automatic transmission oil line (6) from oil line mount (5) at radiator and turn it outwards | ||
| 7 | Unscrew bolt (2) | ||
| 8 | Lift fan shroud (1) with electric fan out of mounts (4) and guide it upwards | ||
| 9 | Install in the reverse order | ||
| 10 | Read out fault memory and erase if required | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnostic system | *WH58.30-Z-1048-13A | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Carry out engine test run |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnostic system, Compact Passenger Car | 6511 1801 00 |
