Remove/install exhaust gas recirculation valve - AR14.20-P-7662GZ
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.964 in MODEL 164.175
| Remove/Install | |||
|---|---|---|---|
| Risk of injury to skin and eyes from handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000GZ | |
| 2 | Remove air filter housing | AR09.10-P-1150GZ | |
| 3 | Remove hot film mass air flow sensor with air intake pipe | AR07.07-P-1454GZ | |

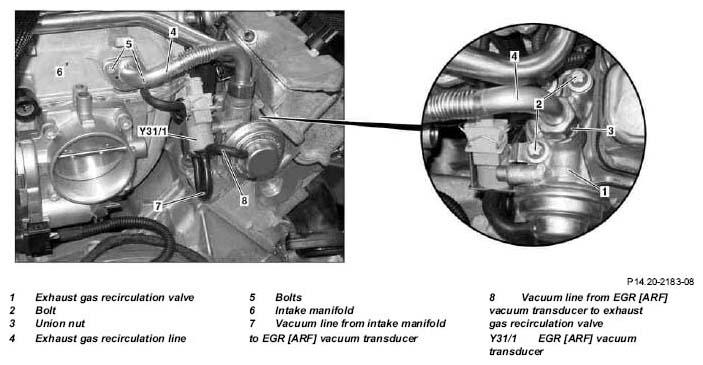

| 4 | Unscrew union nut (3) from exhaust gas recirculation valve (1) | ||
| *BA14.20-P-1002-01B | |||
| 5 | Undo bolts (5) from exhaust gas recirculation line (4) at the intake manifold (6) | *BA14.20-P-1003-01B | |
| 6 | Remove exhaust gas recirculation line (4) | ||
| 7 | Unplug electrical connector at EGR [ARF] vacuum transducer (Y31/1). | ||
| 8 | Disconnect vacuum line from intake manifold to EGR [ARF] vacuum transducer (7) | ||
| 9 | Unscrew bolt (2) from exhaust gas recirculation valve (1) at cylinder head | *BA14.20-P-1001-01B | |
| 10 | Remove exhaust gas recirculation valve (1) | ||
| 11 | Install in the reverse order | ||
| Check | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near engine | Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 12 | Carry out engine test run |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 113.940/941/942/943/944/948/960/961/962/964/965/966/967/968/969/971/980/981/982/984/987/988 | |
|---|---|---|---|
| BA14.20-P-1001-01B | Bolt, exhaust gas recirculation valve to cylinder head | Nm | 20 |
| BA14.20-P-1002-01B | Union nut, exhaust gas recirculation pipe to exhaust gas recirculation valve | Nm | 40 |
| BA14.20-P-1003-01B | Screw, exhaust gas recirculation pipe to intake pipe | Nm | 9 |
