Removing/installing hot film mass air flow sensor together with the air intake pipe - AR07.07-P-1454GZ

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

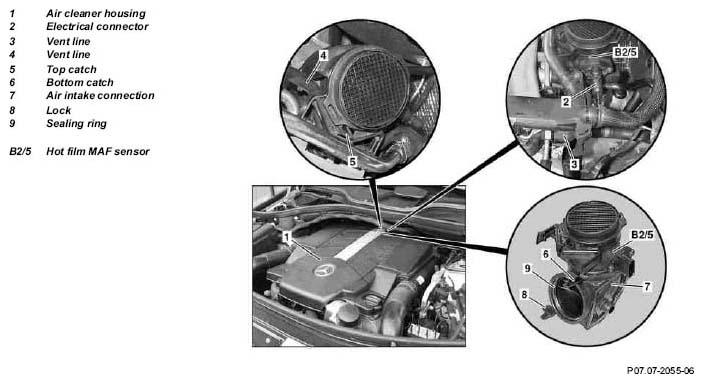

Fig 1: Identifying Hot Film Mass Air Flow Sensor And Air Intake Pipe Components
G05257633Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing/installing
DANGER Risk of injury  caused by fingers being jammed or pinched  when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. When moving components, ensure that no body parts or limbs are within the operating range of moving parts. AS00.00-Z-0011-01A
1 Open engine hood and raise to vertical position   AR88.40-P-1000GZ
2 Remove air cleaner housing (1).   AR09.10-P-1150GZ
3 Remove the electrical connector (2) at the hot film mass air flow sensor (B2/5)
4 Detach vent line (3) from hot film mass air flow sensor (B2/5)
5 Release vent line (4) from bracket at hot film mass air flow sensor (B2/5).
6 Open top catch (5) at top of hot film mass air flow sensor (B2/5)
7 Use a hook to pull up bottom catch (6) at top of air intake connection (7) IMPORTANT To do this, push the hot film mass air flow sensor (B2/5) as far back as possible, until the lower catch (6) cannot latch again.
8 Use a screwdriver to press down lock (8) on the air intake connection (7) IMPORTANT To do this, push the hot film mass air flow sensor (B2/5) as far back as possible, until the catch (8) cannot latch again.
9 Remove hot film mass air flow sensor (B2/5) from throttle valve actuator IMPORTANTInstallation:  Check sealing ring (9), replace if required. Check the sealing ring between air inlet connection (7) and hot film mass air flow sensor, replace if required. Check upper lock (5), lower lock (6) and lock (8); replace locks or air intake connections (7) as required.
10 Unclip pneumatic line on AIR management control system from brackets on the air intake connection (7)
11 Install in reverse order
12.1 Read out fault memory and erase if required IMPORTANT When replacing the hot film mass air flow sensor (B2/5).
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect up STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
    STAR DIAGNOSIS diagnostic system *WH58.30-Z-1048-13A
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns when working in engine during starting procedure Secure vehicle to prevent it from moving.
Wear closed and snug-fitting work clothes.
Do not grasp hot or rotating parts.		 AS00.00-Z-0005-01A
13 Conduct engine test run and check the intake system for leaks NOTES If a leak is found, determine the cause and rectify, otherwise engine malfunctions may result.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1048-13A STAR DIAGNOSIS diagnostic system, Compact Passenger Car 6511 1801 00
