Removing/installing the slide rail in timing case cover - AR05.10-P-8484GZ (ML500)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.964 in MODEL 164.175
| Removing/installing | |||
|---|---|---|---|
| 1 | Remove engine compartment paneling | AR61.20-P-1105GZ | |
| 2 | Drain engine oil | Refer to: ↓ | |
| Engine oil and filter change | AP18.00-P-0101GZ | ||
| 3 | Remove cylinder heads | AR01.30-P-5800GZ | |
| 4 | Remove bottom part of oil pan | AR01.45-P-7555GZ | |
| 5 | Remove timing case cover | AR01.40-P-8000GZ | |

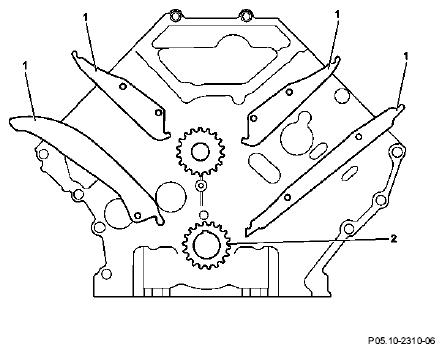

| 6 | Remove slide rails (1) | At the same time detach slide rails (1) toward front from the retaining bolts. | |
| 7 | Install in reverse order |
