Check, remove, install valve guides - AR05.30-P-3731GZ: Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

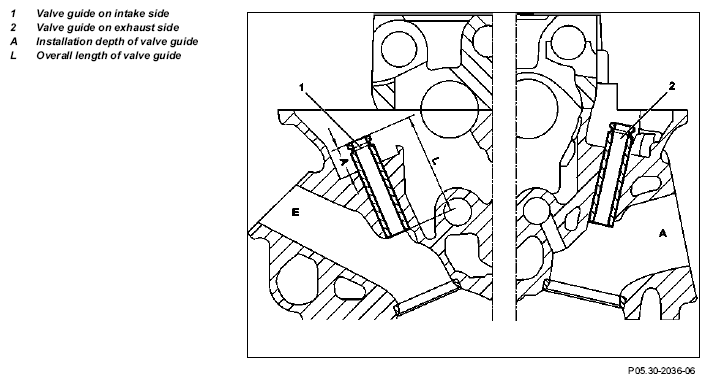

Fig 1: Identifying Valve Guides Length
G05257465Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
1 Remove valves   AR05.30-P-3511GZ
2 Inspect valve guide on intake side (1) and valve guide on exhaust side (2)   AR05.30-P-3731-06VT
*BE05.30-P-1005-02D
    SPECIAL TOOL Feeler gauge Fig 2
3 Knock out valve guide on intake side (1) and valve guide on exhaust side (2) IMPORTANT The valve guides of the exhaust and intake sides are identical. AR05.30-P-3731-01AV
*BE05.30-P-1004-02D
    SPECIAL TOOL Supports (1 pair) Fig 3
    SPECIAL TOOL Drift Fig 8
4 Measure valve guide external diameter IMPORTANT Using an outside micrometer, measure and determine which valve guide was installed. Fit the next largest valve guide according to the valve guide installed. *BE05.30-P-1001-02D
    COMMERCIALLY AVAILABLE TOOLS Outside micrometer
IMPORTANT Valve guides of standard stage and standard stage I are not supplied as replacement parts; therefore: ↓		 *WH58.30-Z-1002-12A
    Reaming basic bore to repair stage I AR05.30-P-3731-04VT
*BE05.30-P-1002-02D
*BE05.30-P-1003-02D
    SPECIAL TOOL Supports (1 pair) Fig 3
    SPECIAL TOOL Ream Fig 4
    SPECIAL TOOL Guide sleeve Fig 5
    SPECIAL TOOL Cylinder brush Fig 6
5 Insert and inspect valve guide on intake side (1) and valve guide on exhaust side (2)   AR05.30-P-3731-03VT
    SPECIAL TOOL Supports (1 pair) Fig 3
    SPECIAL TOOL Drift Fig 7
    SPECIAL TOOL Feeler gauge Fig 2
6 Install in the reverse order
TEST AND ADJUSTMENT VALUES FOR VALVE GUIDES

Number Designation Engine 112 except 112.951/976, Engines 113.940/941/942/943/944/945/946/948/960/961/962/963/964/965/966/967/968/969/971/980/981/982/984/986/987/988/990/991/992/993/995
BE05.30-P-1001-02D Outside diameter of exhaust and intake valve guide Standard series mm 12.540...12.551
Standard I series (color: blue) mm 12.560...12.571
Repair stage I (color: red) mm 12.740...12.751
Repair stage II (color: yellow) mm 13.140...13.151
BE05.30-P-1002-02D Bore diameter in cylinder head of exhaust and intake valve guide Standard series mm 12.500...12.511
Standard I series (color: blue) mm 12.520...12.531
Repair stage I (color: red) mm 12.700...12.711
Repair stage II (color: yellow) mm 13.100...13.111
BE05.30-P-1003-02D Overlap in cylinder head mm 0.029...0.051
BE05.30-P-1004-02D Length L mm 50
BE05.30-P-1005-02D Dimension A mm 14.3 (± 0.2)
Fig 2: Identifying Feeler Gauge (102 589 01 23 00)
G05257466Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Supports (1 Pair) (606 589 00 31 00)
G05257467Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Reaming Tool (119 589 01 53 00)
G05257468Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Guide Sleeve (113 589 02 63 00)
G05257469Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Cylinder Brush (000 589 10 68 00)
G05257470Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Identifying Drift (113 589 00 15 00)
G05257471Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 8: Identifying Drift (111 589 02 15 00)
G05257472Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-12A Micrometer
