Knocking out valve guide - AR05.30-P-3731-01AV

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Supports (1 Pair) (606 589 00 31 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Drift (11 589 02 15 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Place the cylinder head on both the supports (1). Align the supports (1) so that the valve guide to be knocked out cannot hit the supports (1).

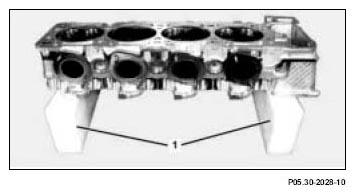

Fig 3: Identifying Cylinder Head Support
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Knock out the valve guide (2) from the side of the combustion chamber using a drift (3)

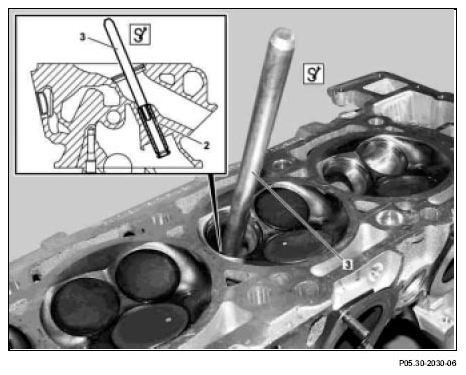

Fig 4: Identifying Knock Out Valve Guide From Side Of Combustion Chamber

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
