Check basic position of camshafts - AR05.20-P-6010AMG (ML63 AMG): Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156

Basic position of camshafts for a 40° crank angle after top dead center

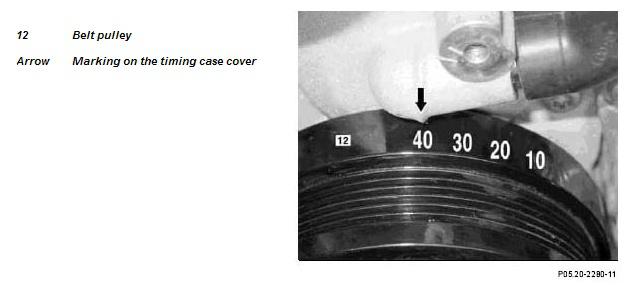

Fig 1: Identifying Belt Pulley And Mark On Timing Case Cover

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on right cylinder head

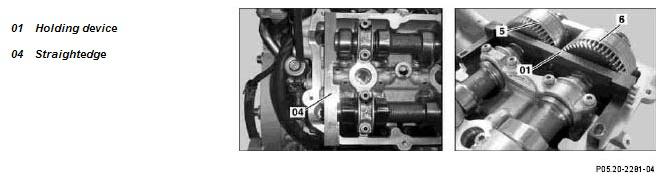

Fig 2: Identifying Holding Device And Straightedge

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel	No fire, sparks, open flames or smoking. Only pour fuels into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Turn key in ignition switch to position "0".	Vehicles with code 889 Keyless-Go: Switch off engine, remove Keyless-Go cards out of vehicle and store outside of the transmitter range.
2	Open engine hood and raise to vertical position	Model 164	AR88.40-P-1000GZ
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
		Model 219	AR88.40-P-1000TX
		Model 251 Model 216, 221	AR88.40-P-1000RT
3	Remove partition wall between wheelhouses	Model 251	AR62.30-P-2400RT
4	Remove air filter housing	Model 164, 251	AR09.10-P-1150GZS
		Model 209, 211, 219	AR09.10-P-1150TMG
		Model 216, 221	AR09.10-P-1150SMG
5	Remove spark plugs	Only if it is not possible to crank engine due to high compression.
		Model 164, 251	AR15.12-P-1010GZS
		Model 209, 211, 219	AR15.12-P-1010TMG
		Model 216, 221	AR15.12-P-1010SMG
6	Remove poly-V belt	Model 209 with code P98 Black Series	AR13.22-P-1202TMG
7	Detach the guide pulley above crankshaft belt pulley (12)	Model 209 with code P98 Black Series
			*BA13.25-P-1005-01U
8	Turn the engine on the crankshaft center bolt in the direction of engine rotation to 40° crank angle ATDC of cylinder 1	The TDC marking on belt pulley (12) must align with marking on timing case cover (arrow).
9	Remove cylinder head covers	Model 164, 251	AR01.20-P-5014GZS
		Model 209, 211, 219	AR01.20-P-5014TMG
		Model 216, 221	AR01.20-P-5014SMG
10	Fix camshafts in place with a straightedge (04) on the rear side		Fig 3
11	Install holding device (01) on right or left cylinder head	The holding device (01) must be able to move over the camshaft. If this is not the case, the timing must be set: ↓ Remove/install camshaft adjusters
		Up to engine number 001177	AR05.20-P-7201ANG
		From engine number 001178	AR05.20-P-7201AMG
		The holding device (01) is constructed symmetrically. To check the camshafts in the LH cylinder head, the holding device (01) and straightedge (04) are mounted in the same way as for the RH side.
			Fig 3
12	Install in the reverse order

BELT TENSIONING DEVICE

Number	Designation		Engine 156
BA13.25-P-1005-01U	Guide pulley (between poly-V belt tensioning device and coolant pump)	Nm	20

Fig 3: Identifying Holding Device (156 589 00 61 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
