Remove/install oil spray nozzles (pistons) - AR18.00-P-4000AMG (ML63 AMG)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156

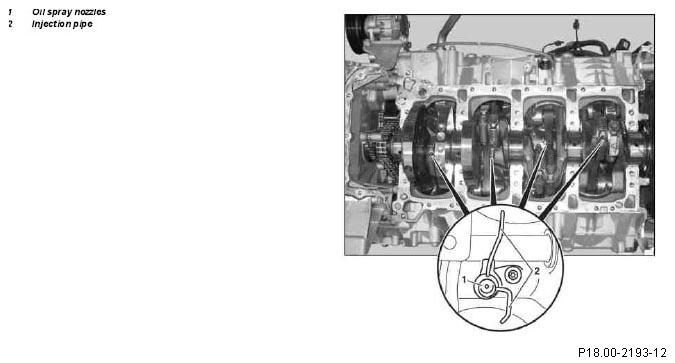

Fig 1: Identifying Oil Spray Nozzles (Pistons) Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1.1	Remove engine with front axle carrier	Model 164, 251	AR01.10-P-2500GZS
1.2	Remove engine	Model 209	AR01.10-P-2400QMG
		Model 211, 219	AR01.10-P-2400TMG
		Model 216, 221	AR01.10-P-2400SMG
2	Detach engine from front axle carrier	Model 164, 251 only	AR01.10-P-2510GZS
3	Detach transmission from engine
4	Mount engine onto assembly stand
5	Remove crankshaft		AR03.20-P-4351AMG
6	Remove oil spray nozzles (1)	Installation: Ensure that injection pipes (2) of oil spray nozzles (1) are not bent or damaged during installation.
			*BA18.00-P-1001-01G
	Clean
7	Inspect/clean oil ducts	Blow through oil ducts in direction of flow oil with compressed air. Do not use any hard objects for cleaning.
8	Install in the reverse order

ENGINE LUBRICATION, ENGINE OIL COOLING, GENERAL

Number	Designation		Engine 156
BA18.00-P-1001-01G	Fitted bolt, oil spray nozzle to crankcase	Nm	13
