Display operating conditions, function - GF54.30-P-3041G

MODEL 463.306/336/346 as of model year 2011/YoM 10

MODEL 463.202/222/236/237 as of model year 2009/YoM 08

MODEL 463.247/248/249/254 up to 31.8.08 as of model year 2007 model year 07.5, modification year 07

MODEL 463.270/271/303/340/341 as of model year 2007 model year 07.5, modification year 07

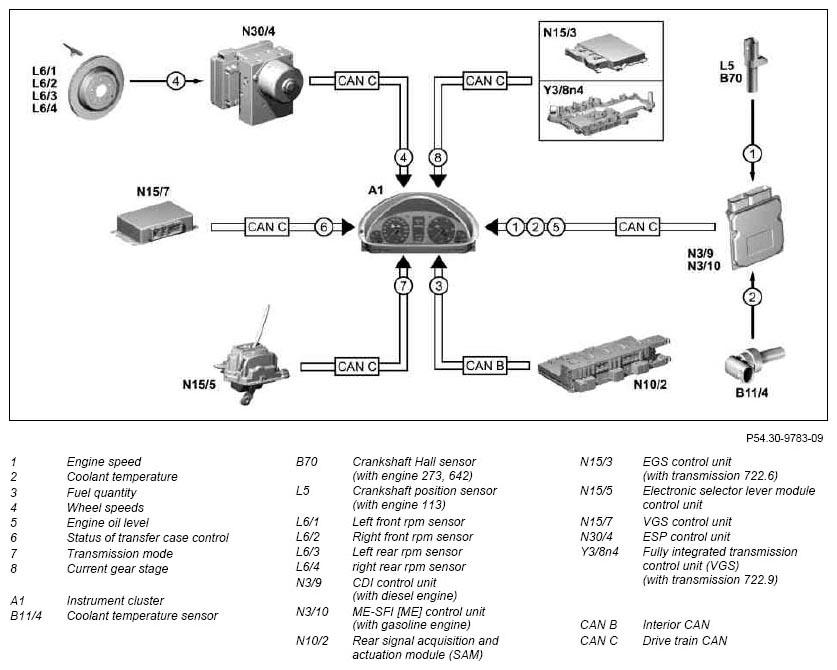

Fig 1: Identifying Display Operating Conditions Function Diagram
G07742109Courtesy of MERCEDES-BENZ USA

Function requirements, general

Function sequence for displaying operating conditions in general

The operating conditions display provides the driver with permanent information about the current operating conditions of the vehicle. The Display operating conditions function is comprised of the following partial functions:

Additional function requirements for function sequence of speed display

Speed display function sequence

The wheel speeds determined by the rpm sensors are read in by the ESP control unit and transmitted via the drive train CAN. The instrument cluster calculates the current speed from the values received. This is adjusted with a stored speedometer characteristic and displayed via a stepper motor in the electronic speedometer (A1p8).

The instrument cluster makes available the vehicle speed value determined for other vehicle systems both on the interior CAN and on the drive train CAN.

IMPORTANT The circuit status is provided by the EZS control unit (N73) on the interior CAN and on the drive train CAN.

Additional function requirements for display of engine speed

Display of engine speed function sequence

The crankshaft speed recorded by the crankshaft position sensor is read in by the ME-SFI [ME] control unit or by the CDI control unit and transmitted on the drive train CAN.

The instrument cluster receives this data and actuates the tachometer accordingly via a stepper motor (A1p5).

Additional function requirements for function sequence of coolant temperature display

Display of coolant temperature function sequence

The coolant temperature recorded by the coolant temperature sensor is read in by the ME-SFI control unit or by the CDI control unit and forwarded to the drive train CAN.

The instrument cluster actuates the stepper motor of the coolant temperature display (A1p1) accordingly.

Display ranges

At coolant temperatures of T > 130 °C a warning message is output in the multifunction display (A1p13).

The actual values are displayed in the event of an additional fan (M4) being recognized as defective.

If the instrument cluster does not receive any coolant temperature, then the coolant temperature gauge is not actuated.

Additional function requirements for function sequence of fuel quantity display

Display of fuel quantity function sequence

The fill level measured via the fuel level sensor (B4) is read in by the rear SAM and transmitted to the instrument cluster via the interior CAN.

The values received are evaluated with the aid of a tank characteristic and displayed in the fuel level indicator in instrument cluster (A1p2) via a stepper motor

The fuel reserve warning lamp (A1e4) lights up if the reserve range is reached.

Additional function requirements for function sequence of travel distance display

Display of travel distance function sequence

The function of the display of travel distance is comprised of several subfunctions:

Calculation of travel distance

The wheel speeds determined by the rpm sensors are read in by the ESP control unit and forwarded to the drive train CAN. The instrument cluster calculates the distance covered from the values received in combination with the tire size.

Display of main odometer reading

The display appears in the multifunction display.

The maximum displayed counter reading of the main odometer reading is 999999.

Display of trip distance

The display appears in the basic display of the "Trip" menu in the multifunction display.

The maximum displayed counter reading of the trip distance is 9999.9. If this value is achieved, the figure returns to zero.

Saving mileage counts

The main odometer reading is continually stored in the nonvolatile part of the internal memory. This memory also guarantees the retention of the counter reading for at least five years also when the power supply is decoupled.

The current reading of the trip odometer is likewise stored in the nonvolatile memory of the instrument cluster. However the current counter reading is first transferred from the volatile memory to the nonvolatile memory after a circuit change from circuit 15 ON to circuit 15 OFF.

Additional function requirements for function sequence of gear indicator

Gear indicator function sequence

The current gear is displayed in the gear indicator (A1p12).

The required data are transmitted from the electronic selector lever module control unit to the instrument cluster via the drive train CAN.

Additional function requirements for function sequence of transmission mode display

Function sequence of transmission mode display

The current transmission mode is shown in the transmission mode display (A1p16).

The required data are transmitted by the VGS [fully integrated transmission control] control unit to the instrument cluster via the drive train CAN.

Function requirements for function sequence of engine oil level indicator

Engine oil level indicator function sequence

The engine oil level is read in by the ME-SFI control unit or by the CDI control unit.

If necessary the ME-SFI [ME] control unit or CDI control unit sends a message to the instrument cluster via the drive train CAN.

As a consequence the instrument cluster fades in the corresponding message in the multifunction display.

  Component description for instrument cluster A1 GF54.30-P-6000G
  Component description for CDI control unit N3/9
On engine 642.9 in model 463.303/340/341,
On engine 642.8 in model 463.306/336/346		 GF07.16-P-6000GZ
  ME-SFI control unit, location/task/design/function N3/10
On engine 113 in model 463.270/271		 GF07.61-P-5000AM
  Component description for ME-SFI [ME] control unit N3/10
On engine 273 in model 463.202/222/236/237		 GF07.61-P-6000G
  Component description for rear SAM control unit with fuse and relay module N10/2 GF54.21-P-6030G
  Component description for electronic selector lever module control unit N15/5
On transmission 722.904 in model 463.202/222/236/237, On transmission 722.902 in model 463.303/306/336/340/341/346		 GF27.60-P-5163GGA
  Component description of transfer case control unit N15/7
Model 463.202/222/236/237/270/271/303/306/336/340/341/346
with transfer case 750.654		 GF28.19-P-3200G
  Component description for ESP control unit N30/4 GF42.45-P-5118G
  Electronic ignition/starter switch control unit (EZS), component description N73 GF80.57-P-6000G
  Component description for fully integrated transmission control unit Y3/8n4
On transmission 722.904 in model 463.202/222/236/237, On transmission 722.902 in model 463.303/306/336/340/341/346		 GF27.60-P-5165GGA
  Coolant temperature sensor, component description B11/4 GF07.04-P-6040G
  Component description for crankshaft Hall sensor B70
With engine 642		 GF07.04-P-6220P
  Crankshaft position sensor, location/task/design/function L5
With engine 113		 GF07.04-P-4116AM
  Wheel rpm sensor, component description L6/1, L6/2, L6/3, L6/4 GF42.45-P-5134G
