Remove/install steering angle sensor - AR46.10-P-0300GX

MODEL 463.202 /222 /236 /237, 463.243 /244 /245 /246 /247 /248 /249 /250 /254 as of 1.6.04, 463.270 /271 /303 /306, 463.309 /322 /323 /332 /333 as of 1.6.04, 463.336 /340 /341 /346

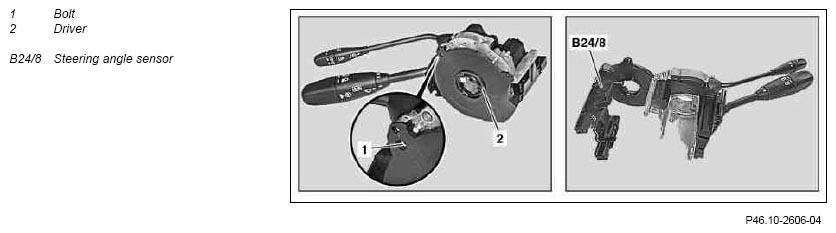

Fig 1: Identifying Steering Angle Sensor Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove steering wheel		AR46.10-P-0100P
2	Remove clock spring contact		AR46.10-P-0200GX
3	Unscrew bolt (1)
4	Pull steering angle sensor (B24/8) off steering column switch module	Do not twist the driver (2).
5	Install in the reverse order
