Remove/install clock spring contact - AR46.10-P-0200GX

MODEL 463.202 /222 /236 /237, 463.243 /244 /245 /246 /247 /248 /249 /250 /254 as of 1.6.04, 463.270 /271 /303 /306, 463.309 /322 /323 /332 /333 as of 1.6.04, 463.336 /340 /341 /346

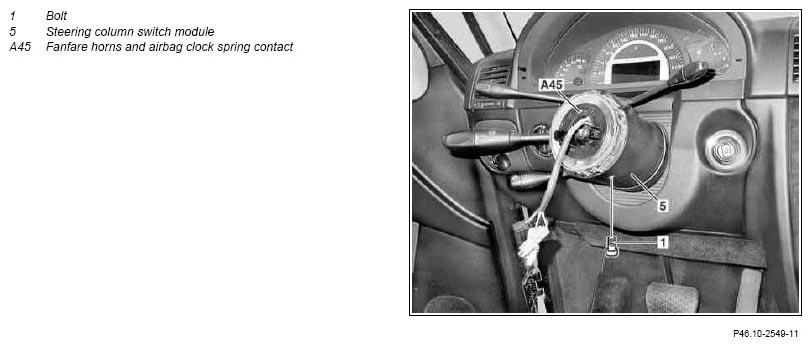

Fig 1: Identifying Clock Spring Contact Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

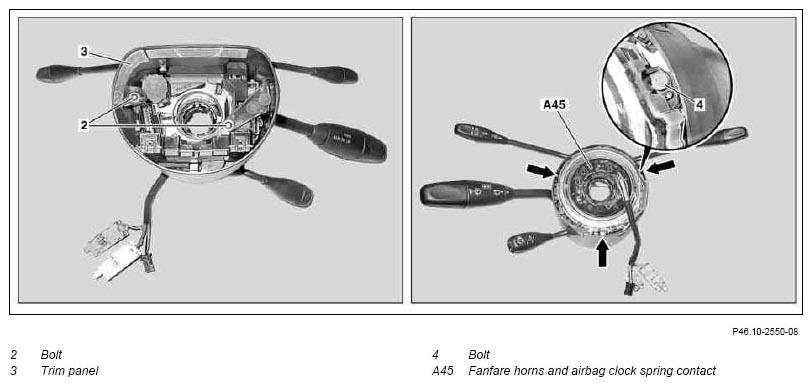

Fig 2: Identifying Clock Spring Contact Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove steering wheel		AR46.10-P-0100P
2	Slacken bolt (1) on steering column switch module (5)	The bolt (1) remains on the steering column switch module (5).
3	Pull steering column switch module (5) complete with combination switches and fanfare horns and airbag clock spring contact (A45) off steering column	Do not twist the fanfare horns and airbag clock spring contact (A45).
4	Unscrew bolts (2) and pull off trim panel (3)
5	Unscrew bolts (4)
6	Detach fanfare horns and airbag clock spring contact (A45)	Installation:  If the fanfare horns and airbag clock spring contact (A45) was twisted, it must be replaced.
7	Check fanfare horns and airbag clock spring contact (A45) for damage	Perform visual inspection and replace the fanfare horns and airbag clock spring contact (A45) if necessary.
8	Install in the reverse order
