Remove/install overpressure reservoir for dynamic seat control - AR91.25-P-1570T
MODEL 211.0 with CODE (433) Left dynamic seat, incl. multicontour seat with CODE (434) Right dynamic seat, incl. multicontour seat
| Remove/Install | |||

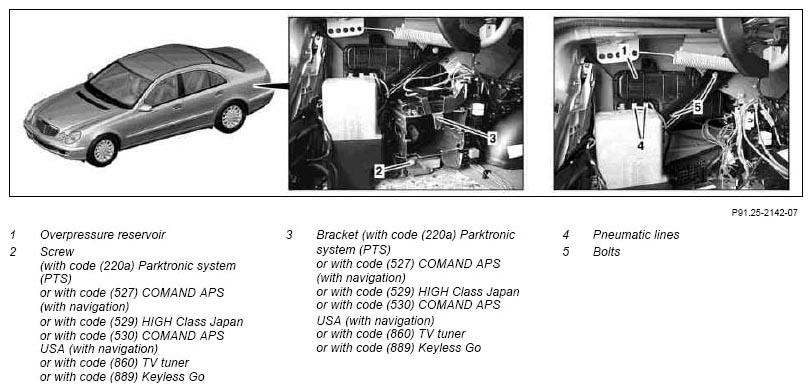

| 1 | Remove left side paneling in trunk | On vehicles without code (287a) through-loading feature | AR68.30-P-4800T |
| On vehicles with code (287a) Through-loading feature | AR68.30-P-4800TA | ||
| 2.1 | Remove screw (2) and swivel bracket (3) forwards | Only for vehicles with code (220a) Parktronic system (PTS) (with code (220a) Parktronic system (PTS) or with code (527) COMAND APS (with navigation) or with code (529) HIGH Class Japan or with code (530) COMAND APS USA (with navigation) or with code (860) TV tuner or with code (889) Keyless Go |
|
| 3 | Disconnect pneumatic lines (4) from overpressure reservoir (1) | ||
| 4 | Remove screws (5) and remove overpressure reservoir (1) downwards | ||
| 5 | Install in the reverse order |
