Partially replace outer side longitudinal member - AR63.30-P-1050T
MODEL 211.0/2
Shown on model 211.0
| Remove | |||
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the and position the four support plates below the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of death caused by high voltage used for arc welding. Risk of explosion caused by welding in the area of highly inflammable materials. Injury hazard from welding spatter and UV-light while welding. Risk of poisoning caused by inhaling welding vapors. | Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the danger zone. Use air extractor. | AS00.00-Z-0007-01A | |
| General information on body repair | All models | AH60.00-N-0001-01A | |
| Measures for preventing damage to vehicles or components when performing arc welding work | All models | AH00.00-N-0005-01A | |
| Notes on paintwork repairs | All models | AH98.00-P-9408-02A | |
| General information on MB materials | All models | AH98.00-P-9409-03A | |
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Cover detachable body components which remain in vehicle | Tarpaulin (fire-resistant) | |
| 3 | Remove rear door | AR72.12-P-0600T | |
| 4 | Separate outer side longitudinal member | AR63.30-P-1050-01T | |

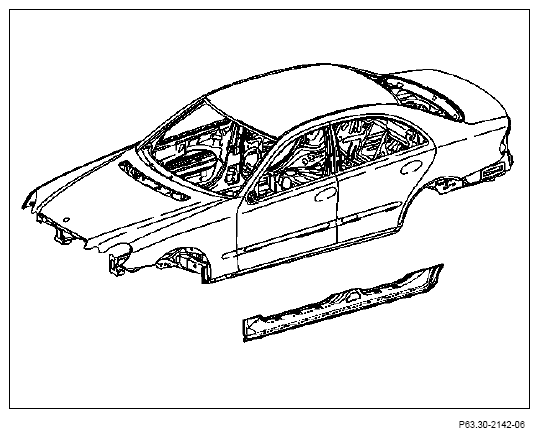

| Figure | |||
| Figure | |||
| Spherical milling cutter, dia. 12 mm Vario Drill WS 91 spot weld removing tool Abrasive disk, dia. 115 mm, 80 m/s (max. 13.250 RPM) Hot-air gun - 3000 W Drill (electric/pneumatic) http://gotis.aftersales.mercedes-benz.com Tarpaulin (fire-resistant) Two-post lift http://gotis.aftersales.mercedes-benz.com Straight grinder (electric/pneumatic) http://gotis.aftersales.mercedes-benz.com Angular grinder (electric/pneumatic) http://gotis.aftersales.mercedes-benz.com Body saw (electric/pneumatic) http://gotis.aftersales.mercedes-benz.com Wet/dry vacuum cleaner http://gotis.aftersales.mercedes-benz.com Zinc dust paint suitable for spot welding |
*BR00.45-Z-1001-07A | ||
| 5 | Prepare outer side longitudinal member | AR63.30-P-1050-02T | |
| Figure | |||
| Round wire brush, braided, dia. 70 mm Drill (electric/pneumatic) http://gotis.aftersales.mercedes-benz.com Body saw (electric/pneumatic) http://gotis.aftersales.mercedes-benz.com Zinc dust paint suitable for spot welding |
*BR00.45-Z-1001-07A | ||
| Install | |||
| 6 | Install and weld in outer side longitudinal member | AR63.30-P-1050-03T | |
| General information on riveting | AH60.00-P-0003-01N | ||
| Round wire brush, braided, dia. 70 mm Electrode miller Clamping pliers Hand riveter PowerBird blind rivet tool http://gotis.aftersales.mercedes-benz.com Abrasive disk, dia. 115 mm, 80 m/s (max. 13.250 RPM) Manual temporary fastener, dia. 6.4 mm - Clamping range 0-15 mm, identification color silver Inert gas welder http://gotis.aftersales.mercedes-benz.com Drill (electric/pneumatic) http://gotis.aftersales.mercedes-benz.com Spot welder http://gotis.aftersales.mercedes-benz.com Angular grinder (electric/pneumatic) http://gotis.aftersales.mercedes-benz.com Rivet |
*BR00.45-Z-1001-13A | ||
| 7 | Clean areas to be repaired and prime with priming filler | ||
| 8 | Seam sealing following repair | AR97.10-P-4000T | |
| Sealant | *BR00.45-Z-1003-01A | ||
| Seam sealant, sprayable 310 ml | *BR00.45-Z-1041-01A | ||
| 9 | Paint repair areas and adjacent surfaces | ||
| 10 | Cavity preservation following repair work | ||
| Notes on cavity preservation | Model 124, 126, 129, 140, 170, 201, 202, 203, 208, 210, 211, 215, 220, 463, 671 | AH97.20-P-0001-01B | |
| 11 | Install rear door | AR72.12-P-0600T | |
| 12 | Install detachable body components in area to be repaired |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Sealant, white, 310 ml, DB supply specification 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1001-13A | Blind rivet 6.4x14 | A 003 990 35 97 |
