Remove/install rear door - AR72.12-P-0600T
MODEL 211.0/2

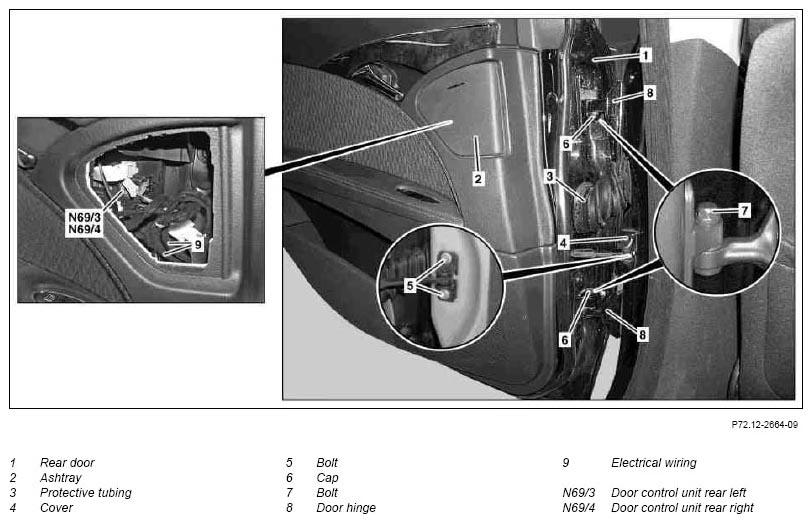

Shown on left rear door
MODIFICATION NOTES
| 6.6.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Completely lower crank window | ||
| 2 | Remove ashtray (2) from rear door (1) | AR72.12-P-1041T | |
| 3 | Move connectors of electrical lines (9) into rear door (1), disconnect from left rear door control unit (N69/3) or right rear door control unit (N69/4) | ||
| 4 | Use an assembly wedge to unclip protector sheath (3) at the rear door (1) | Figure | |
| 5 | Pull electrical line (9) out of rear door (1) toward front | ||
| 6 | Remove cover (4) | ||
| 7 | Remove bolts (5) | *BA72.12-P-1012-01A | |
| 8 | Remove cover caps (6) | ||
| 9 | Remove bolts (7) | *BA72.12-P-1015-01A | |
| 10 | Open front door | ||
| 11 | Remove rear door (1) upward from door hinges (8) with aid of helper and lay down on suitable subsurface | ||
| 12 | Install in the reverse order | ||
| 13 | Check gaps on rear door (1), adjust rear door (1) if necessary | Model 211.0 | AR72.12-P-0650T |
| Model 211.2 | AR72.12-P-0650TA |
REAR DOOR
| Number | Designation | Model 211 | |
|---|---|---|---|
| BA72.12-P-1012-01A | Bolt, door holder to B-pillar | Nm | 10 |
| BA72.12-P-1015-01A | Bolt on door hinge half connection | Nm | 10 |
