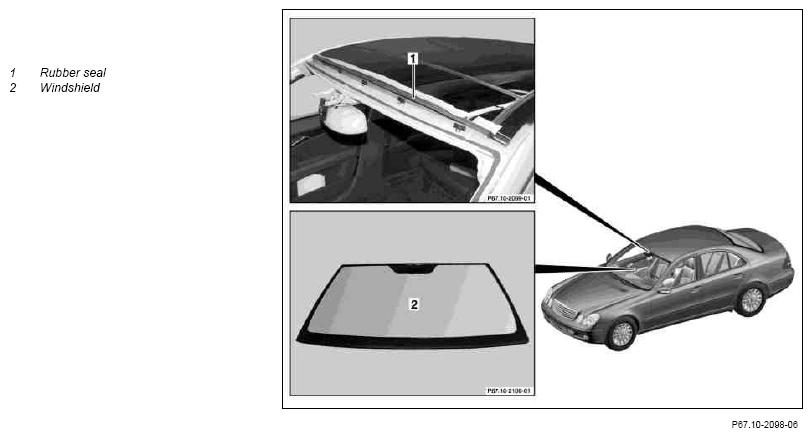

Remove/install detachable parts when replacing windshield - AR67.10-P-1050T
MODEL 211.0 /2 /6
Shown on model 211.0 with code 413
Panoramic sliding roof, with code 419
Solar module for panoramic glass roof
| Remove/install | |||
| 1 | Remove rain/light sensor (B38/2) | AR82.30-P-7800T | |
| 2 | Remove water collector | AR83.25-P-1402T | |
| 3 | Remove ornamental frame on windshield. | Model 211.0 with code 413 Panoramic sliding roof, with code 419 Solar module for panoramic glass roof |
AR67.10-P-1200T |
| 4 | Remove water repellent | Model 211.0 except code 413 Panoramic sliding roof, except code 419 Solar module for panoramic glass roof |
AR88.85-P-2100T |
| Model 211.0 with code 413 Panoramic sliding roof, with code 419 Solar module for panoramic glass roof |
AR77.21-P-0050T | ||
| Model 211.2 | AR88.85-P-2100TB | ||
| 5 | Install in the reverse order |
