Remove/install water repellent - AR88.85-P-2100T

MODEL 211.0

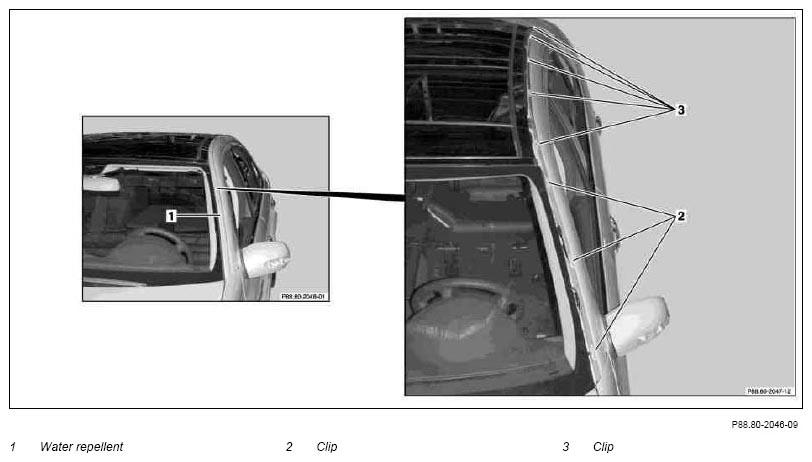

Fig 1: Identifying Water Repellent Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Unclip water repellent (1)	First unclip clips (2) from A-pillar, then clips (3) in roof area Mounting wedge	Figure
2	Remove water repellent (1)
3	Replace clips (3) in roof area	Mark position of old clips (3)
	Install
4	Fit water repellent (1) and punch into clips (2, 4) from rear toward front by hand.	Hit water repellent (1) only in area of clips (2, 3) to prevent damaging water repellent (1).

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
