Remove/install outside mirror paneling - AR88.70-P-9040T

MODEL 211.0/2/6 up to 31.5.06

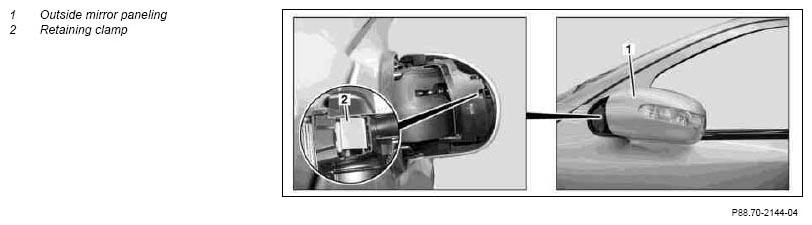

Fig 1: Identifying Outside Mirror Paneling & Retaining Clamps

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

10.12.04

"Glue slip band to outside mirror" added

Step 5.1

	Remove/Install
1	Remove mirror lens		AR88.70-P-9020R
2	Fold outside mirror toward rear	Installation:  Outside mirror should catch.
3	Press back retaining clamp (2) with suitable tool and remove outside mirror paneling (1)
4	Install in the reverse order
	Risk of injury caused by moving parts that can pinch, crush or  , in extreme cases even  sever extremities.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0009-01A
5.1	Glue slip band to outside mirror paneling (1)	On vehicles with code (500) Folding left/right outside mirrors	AR88.70-P-9040-01T
			Figure
		Slip band	*BR00.45-Z-1088-02A
		Cleaner	*BR00.45-Z-1025-04A

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1088-02A	Slip band	A 211 811 00 96
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
