Remove/install mirror lens - AR88.70-P-9020R

MODEL 211.0/2/6 up to 31.5.06

MODEL 230.4## ## up to 064520 except CODE (804) Model year 2004

MODEL 240

Shown on model 230

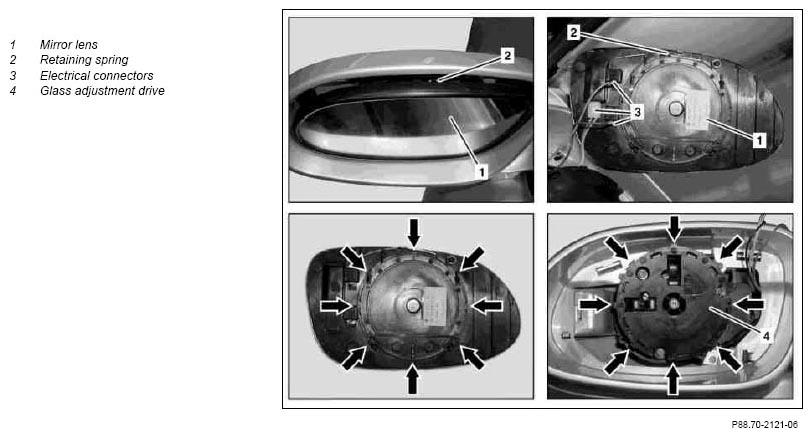

Fig 1: Identifying Mirror Lens Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Risk of injury. Skin, eye and respiratory system irritation may occur through contact or inhalation of substances contained in the mirror lens.	Wear protective gloves and safety glasses.	AS60.00-Z-0008-01R
1	Tilt out mirror lens (1) upward
2	Press retaining spring (2) upward with suitable screwdriver and press mirror lens (1) away from glass adjustment drive (4) with mounting wedge.	Installation:  Clip mirror lens (1) into glass adjustment drive (4) from bottom upward. Thereby observe retaining spring (2) and arrests (arrows) on mirror lens (1) and glass adjustment drive (4).	Figure
3	Disconnect electrical connectors (3) and remove mirror lens (1)
4	Install in the reverse order

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
