Glue slip band onto outside mirror paneling - AR88.70-P-9040-01T

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1088-02A	Slip band	A 211 811 00 96
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

Fold outside mirror (1) toward front by hand and secure with mounting wedge (2) against folding back.

Fig 2: Securing Outside Mirror
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Clean bonding surface (shaded area) on outside mirror paneling (4)
Bonding surface (shaded area) must be absolutely free of grease and dust. Observe flash-off time for cleaning agent.

Fig 3: Identifying Bonding Surface On Outside Mirror Paneling
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Loosen slip band (3) on side of carrier foil (5) and position at top of outside mirror paneling (4).
Completely remove carrier foil (5) from slip band (3) and press firmly to outside mirror (4) with aid of clean and soft rag.
Firmly press on slip band (3). Otherwise optimum adhesion of slip band (3) is not ensured.
Check whether slip band (3) is correctly glued all-round and if air bubbles are present

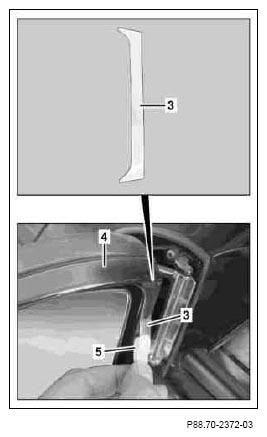

Fig 4: Identifying Slip Band, Carrier Foil And Outside Mirror Paneling
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove mounting wedge (2) and fold back outside mirror (1)

Fig 5: Securing Outside Mirror
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
