High beam control, function - GF82.10-P-3004T

MODEL 211.0 /2 up to 31.5.06 except CODE (614) Bi-xenon headlamp unit except CODE (615) Bi-xenon headlamp unit with integrated curve illumination except CODE (494) USA version except CODE (498) Japan version

MODEL 211.0 /2 up to 30.6.06 with CODE (614) Bi-xenon headlamp unit except CODE (615) Bi-xenon headlamp unit with integrated curve illumination with CODE (494) USA version with CODE (498) Japan version

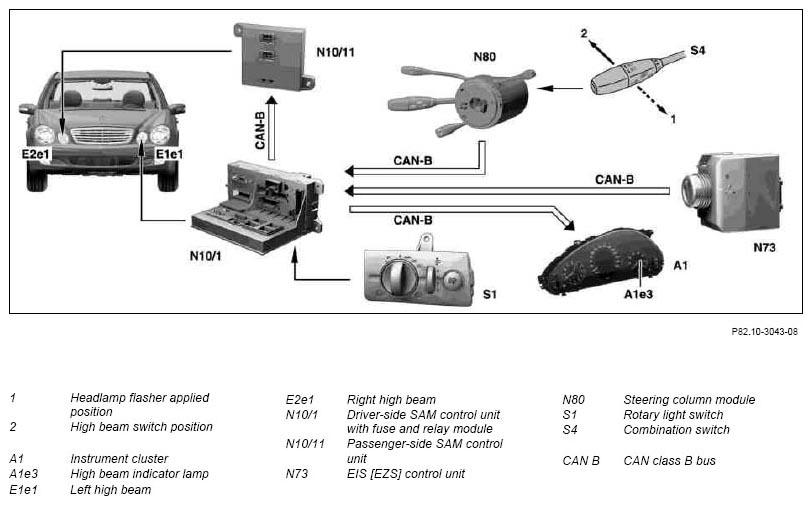

Fig 1: Networking Of High Beam Control Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Networking of components, shown on model 211.0

Function requirements

The transmitter key (A8/1) is located in the EIS [EZS] control unit (N73) in position 1 "Circuit 15R On".
Driving lights ON

Function

The combination switch (S4) is set to the high beam position (2). The steering column module (N80) acquires the applied position of the combination switch (S4) and transmits "high beam On" via CAN class B to the following control units:

Driver-side SAM control unit with fuse and relay module (N10/1)
right SAM control unit (N10/11)
Instrument cluster (A1)

The driver-side SAM control unit with fuse and relay module (N10/1) actuates the left high beam lamp (E1e1) in the left front lamp unit (E1).

The passenger-side SAM control unit (N10/11) actuates the right high beam (E2e1) in the right front lamp unit (E2). The instrument cluster (A1) actuates the blue high beam indicator lamp (A1e3) and thus visually indicates that the high beam is switched on.

Actuating headlamp flasher function

When the headlamp flasher is pressed the functional sequence and signal flow is the same as for the high beam actuation. The difference between the headlamp flasher and high beam lies in the switch position of the combination switch (S4). This must be moved in the directly opposite direction to the headlamp flasher switch position (1) and held there. The headlamp flasher and thus the high beam remain active as long as the combination switch (S4) is held in the headlamp flasher switch position (1).

Headlamp flasher functionality is independent of the rotary light switch (S1) position.

Driver-side SAM control unit with fuse and relay module, location/task/design	GF54.21-P-4109T
Front passenger-side SAM control unit with fuse and relay module, location/task/design	GF54.21-P-4111T
Steering column module, location/task	GF54.21-P-4125T
Rotary light switch module, location/task/design	GF82.10-P-4104T
Electronic ignition switch control unit, location/task	GF80.57-P-4120T
Instrument cluster (IC), location / task	GF54.30-P-3039T
