Remove/install wiper linkage - AR82.30-P-7600T
MODEL 211.0/ 2/ 6
MODIFICATION NOTES
| 14.1.04 | Disconnect/connect/remove ground lead from battery | AR82.30-P-6800-01T |
| Remove | |||

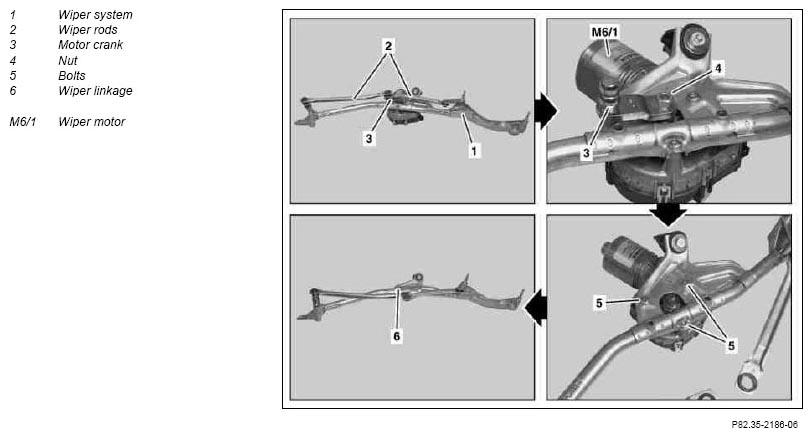

| 1 | Remove wiper system (1) | AR82.30-P-6400T | |
| 2 | Detach wiper rods (2) from motor crank (3) | ||
| 3 | Unscrew bolts (5) | ||
| 4 | Remove wiper motor (M6/1) from wiper linkage (6) | ||
| Install | |||
| 5 | Move wiper motor (M6/1) to parking position | AR82.30-P-6800-01T | |
| 6 | Fit wiper motor (M6/1) to wiper linkage (6) and screw in bolts (5) | *BA82.30-P-1001-01A | |
| 7 | Fit wiper rods (2) to motor crank (3) | ||
| 8 | Install wiper system (1) | AR82.30-P-6400T |
WINDSHIELD WIPER
| Number | Designation | Model 211.0 | Model 211.2 | Model 211.6 | |
|---|---|---|---|---|---|
| BA82.30-P-1001-01A | Bolt to wiper motor fixing. | Nm | 9 | 9 | 9 |
