Remove/install license plate lamps - AR82.10-P-5161T

MODEL 211.0

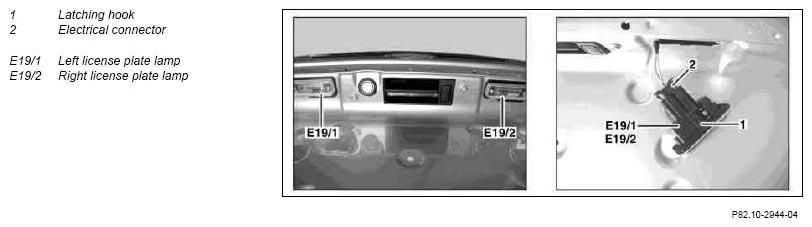

Fig 1: Identifying License Plate Lamp Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove outer paneling at trunk lid	Model 211.0 up to 27.11.02	AR88.50-P-5080T
1	Remove outer paneling at trunk lid	Model 211.0 as of 28.11.02	AR88.50-P-5080TA
2	Unclip left license plate lamp (E19/1) or right license plate lamp (E19/2) from the latching hooks (1) and pull out of trunk lid
3	Disconnect electrical connector (2) and remove left license plate lamp (E19/1) or right license plate lamp (E19/2)
4	Install in the reverse order
