Remove/install outer paneling on trunk lid - AR88.50-P-5080T

MODEL 211.0 up to 27.11.02

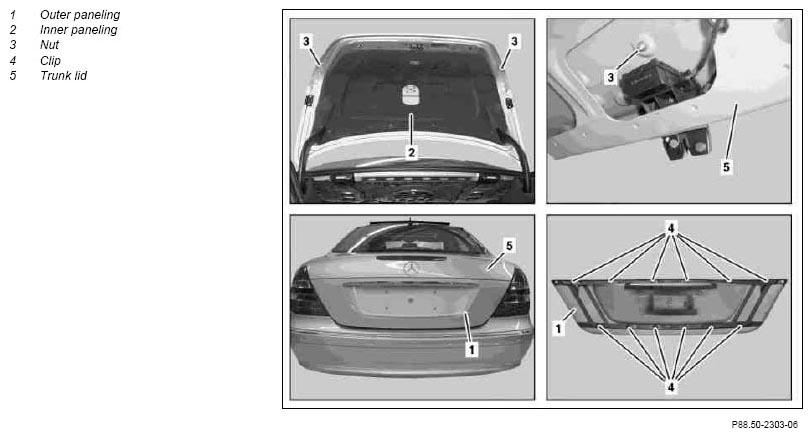

Fig 1: Identifying Trunk Lid Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
	If the outer paneling (1) or the trunk lid (5) have been replaced, the version as of 28.11.02 may have been installed due to technical modifications. It can be recognized on outer paneling (1) with grip at lower edge of trunk lid.
1	Remove license plate from trunk lid (5).
2	Remove inner paneling (2) from trunk lid (5).		AR68.30-P-8150T
3	Unscrew nuts (3)
4	Unclip clip (4) on outer paneling (1) from trunk lid (5)		Figure
5	Remove outer paneling (1)	When replacing outer paneling (1) install only the version as of 28.11.02. For installation perform method for modified outer paneling (1) on trunk lid (5)↓ Remove/install outer paneling on trunk lid	AR88.50-P-5080TA
	Install
6	Position outer paneling (1) to trunk lid (5) and clip in	Clips (4) should completely catch on the trunk lid (5) to prevent moisture from getting into the vehicle. Replace damaged clips (4).
7	Tighten nuts (3)
8	Install inner paneling (2) on trunk lid (5)		AR68.30-P-8150T
9	Install license plate on trunk lid (5)

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
