Remove/install outer paneling on trunk lid - AR88.50-P-5080TA

MODEL 211.0 as of 28.11.02

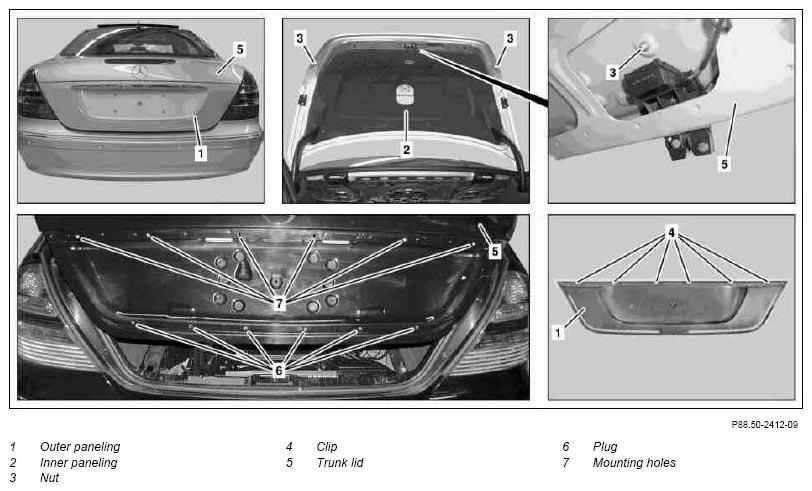

Fig 1: Identifying Trunk Lid Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Remove license plate from trunk lid (5)
2	Remove inner paneling (2) from trunk lid (5).		AR68.30-P-8150T
3	Unscrew nuts (3)
4	Unclip clips (4) on outer paneling (1) from mounting holes (7)		Figure
5	Remove outer paneling (1) downward
	Install
6.1	Check mounting holes on bottom of trunk lid (5) for missing plugs (6), install plugs (6) if necessary.	On vehicles with mounting holes at bottom of trunk lid (5).
7	Position outer paneling (1) to trunk lid (5) from bottom and clip clips (4) into mounting holes (7).	Clips (4) should completely catch on the trunk lid (5) to prevent moisture from getting into the vehicle. Replace damaged clips (4).
8	Screw nuts (3)
9	Install inner paneling (2) on trunk lid (5)		AR68.30-P-8150T
10	Install license plate on trunk lid (5)

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
