Remove/install antenna splitter - AR82.70-P-8953TA

MODEL 211.0 with CODE (525) MB Audio 50 APS radio with CODE (941) Preinstallation for radio data transmission GPS antenna splitter

MODEL 211.0 with CODE (527) COMAND APS (with navigation) with CODE (941) Preinstallation for radio data transmission GPS antenna splitter

MODEL 211.0 with CODE (525) MB Audio 50 APS radio with CODE (383) CP-High telephone system GPS antenna splitter

MODEL 211.0 with CODE (527) COMAND APS (with navigation) with CODE (383) CP-High telephone system GPS antenna splitter

MODEL 211.0 with CODE (383) CP-High telephone system with CODE (941) Preinstallation for radio data transmission GPS antenna splitter

MODEL 211.0 with CODE (530) COMAND APS USA (with navigation system) with CODE (384) Telephone preinstallation for USA GPS antenna splitter

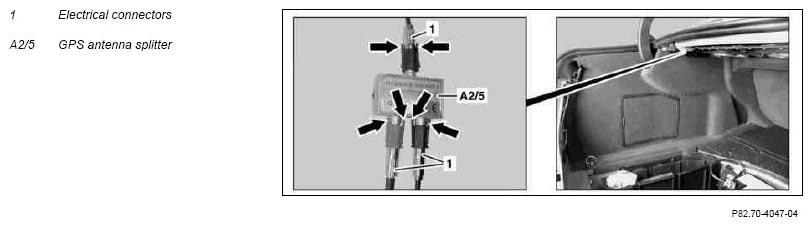

Fig 1: Identifying GPS Antenna Splitter And Electrical Connectors

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove left side trim in trunk	For vehicles without code (287a) Through-loading feature	AR68.30-P-4800T
1	Remove left side trim in trunk	For vehicles with code (287a) Through-loading feature.	AR68.30-P-4800TA
2	Unclip GPS antenna splitter (A2/5) from rear shelf		Figure
3	Disconnect electrical connectors (1) at GPS antenna splitter (A2/5)	Push locking clips together (arrows) to do this. Installation: Ensure electrical connectors (1) are correctly latched into place.
4	Remove GPS antenna splitter (A2/5) from luggage compartment
5	Install in the reverse order
