Remove/install additional turn signal lamp - AR82.25-P-4726T

MODEL 211.0/ 2/ 6

Shown on left outside mirror, vehicle up to 31.5.06 and code (954) Avantgarde

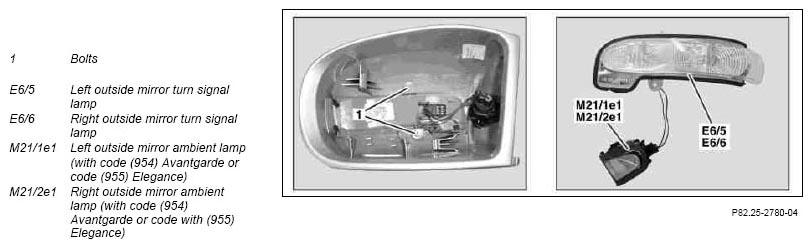

Fig 1: Identifying Additional Turn Signal Lamp Components (Up To 31.5.06 And Code (954) Avantgarde)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on left outside mirror, vehicle as of 1.6.06

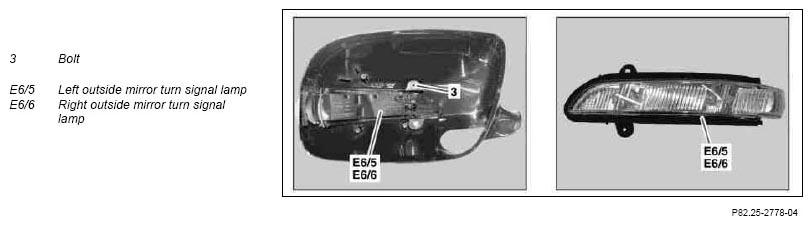

Fig 2: Identifying Outside Mirror Turn Signal Lamp Components (As Of 1.6.06)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove covering on outside rearview mirror	In vehicles up to 31.5.06	AR88.70-P-9040T
		In vehicles as of 1.6.06	AR88.70-P-9040TM
2.1	Remove bolts (1)	In vehicles up to 31.5.06
2.2	Unscrew bolt (3).	In vehicles as of 1.6.06
3.1	Unclip left outside mirror ambient lamp (M21/1e1) or right outside mirror ambient lamp (M21/2e1) from outside mirror trim, expose associated electrical lines	In vehicles with Code (954) Avantgarde or Code (955) Elegance
4	Remove left outside mirror turn signal lamp (E6/5) or right outside mirror turn signal lamp (E6/6) from outside mirror trim
5	Install in the reverse order
