Remove/install outside mirror paneling - AR88.70-P-9040TM

MODEL 211.0/2/6 as of 1.6.06

Shown on left outside mirror

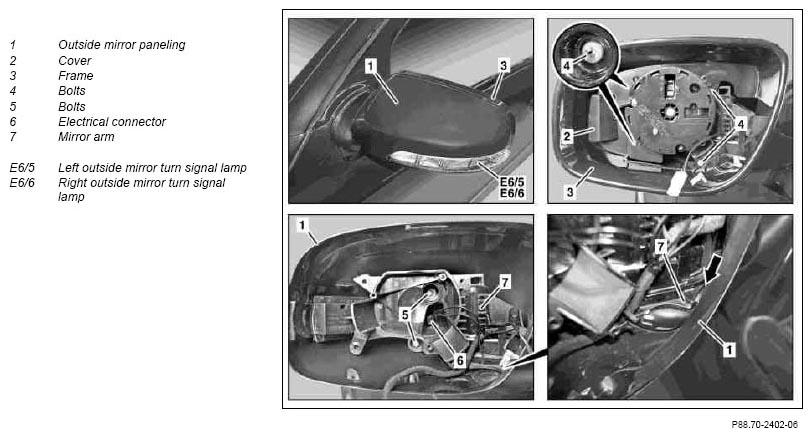

Fig 1: Identifying Outside Mirror Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove mirror glass		AR88.70-P-9020TX
2	Remove cover (2).	Cover (2) is damaged during removal and must be replaced. Installation:  Clean adhesive surfaces for cover (2) on frame (3).
3	Unscrew bolts (4) and remove frame (3) from outside mirror paneling (1).
4	Remove glass adjustment drive		AR88.70-P-9060R
5	Remove bolts (5)
6	Disconnect electrical connector (6)
7	Loosen catch (arrow) on mirror arm (7), guide outside mirror paneling (1) over mirror arm (7) and remove.
8	Remove left outside mirror turn signal lamp (E6/5) or right outside mirror turn signal lamp (E6/6) from outside mirror cover (1)
9	Install in the reverse order
