Remove/install propeller shaft - AR41.10-P-0050T

MODEL 211

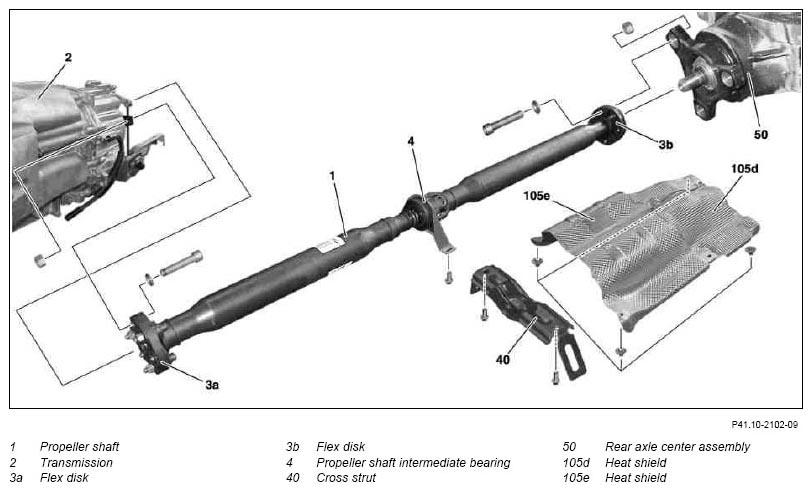

Fig 1: Identifying Propeller Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1.1	Remove exhaust system at flange connection	Engines 646, 647	AR49.10-P-7280T
1.2	Remove exhaust system from pipe connection	Engine 648	AR49.10-P-7281T
1.3	Remove complete exhaust system	Engines 112, 113, 156	AR49.10-P-7000TB
		Engine 271	AR49.10-P-7000TK
		Engine 272, 273	AR49.10-P-7000TS
		Engine 628	AR49.10-P-7000TD
		Engine 629	AR49.10-P-7000TJ
		Engine 642	AR49.10-P-7000TI
2	Remove heat shield (105d) and heat shield (105e)	Installation:  Replace sheet metal nuts.
3	Detach cross strut (40) from frame floor		*BA61.10-P-1005-01C
4	Mark propeller shaft (1)	Apply color identifications of propeller shaft position relative to transmission (2), to the rear axle center assembly (50) and to propeller shaft intermediate bearing (4), in order to reproduce the plant installation position when installing, otherwise drive line vibrations may occur.
5	Detach propeller shaft (1) from transmission (2)	Secure propeller shaft (1) against falling. The flexible coupling (3a) remains on the propeller shaft (1).	AR41.10-P-0050-02T
		Installation:  Mount propeller shaft (1) on transmission (2).	AR41.10-P-0050-07I
6	Detach propeller shaft (1) from rear axle center assembly (50)	The flexible coupling (3b) remains on the propeller shaft (1).
		Installation:  Mount propeller shaft (1) on rear axle center assembly (50).	AR41.10-P-0050-04I
7	Loosen fitting sleeves of flexible couplings (3a, 3b)		AR41.10-P-0050-09DA
8	Remove bolts of propeller shaft intermediate bearing (4) from frame floor	Installation:  The bolts of the propeller shaft intermediate bearing (4) may only be tightened securely when the propeller shaft (1) is mounted securely on the transmission (2) and rear axle center assembly (50).
			*BA41.40-P-1001-01A
9	Detach propeller shaft (1) from centering journal on rear axle center assembly (50) and transmission (2) and take out downwards	Installation:  Pack insides of both centering sleeves with all-purpose grease.
			*BF41.10-P-1001-01A
10	Separate propeller shaft (1) at slide connection	If necessary.
		Installation:  Assemble propeller shaft (1). Coat splined profile with Molykote grease.	AR41.10-P-0050-05DA
	Long-life grease (NLGI grade 2)	Sheet 266.2	BB00.40-P-0266-02A
	Checking
11	Check propeller shaft intermediate bearing (4) for wear and damage	If necessary, remove/install propeller shaft center support bearing (4) and replace grooved ball bearing.	AR41.10-P-0100T
12	Check centering sleeves for wear	If necessary, replace centering sleeve.	AR41.10-P-0200T
13	Check flexible couplings (3a, 3b) of propeller shaft (1) for wear	If damage is found during the visual inspection, the flexible couplings (3a, 3b) should be replaced subject to separate repair order in order to prevent consequential damage to the drive train.
	Check propeller shaft flex disks for signs of damage and deformation		AP41.10-P-4152Z
14	Install in the reverse order

FRAME FLOOR ASSEMBLY

Number	Designation		Model 211
BA61.10-P-1005-01C	Self-tapping screw connecting front cross strut to frame floor	Nm	23

PROPELLER SHAFT INTERMEDIATE BEARING

Number	Designation			Model 211
BA41.40-P-1001-01A	Bolt, propeller shaft intermediate bearing to frame floor assembly	Self-tapping screw	Nm	25
		Bolt with washer	Nm	-
		Bolt with collar and self-centering tip	Nm	-
		Bolt with collar and without self-centering tip	Nm	-

PROPELLER SHAFT

Number	Designation			Model 211
BF41.10-P-1001-01A	Grease quantity	Centering sleeve of propeller shaft	g	3
		Specifications for Operating Fluids	Sheet	BB00.40-P-0267-00A
