Remove, install detachable parts when replacing rear side window - AR67.30-P-4100T

MODEL 211.2

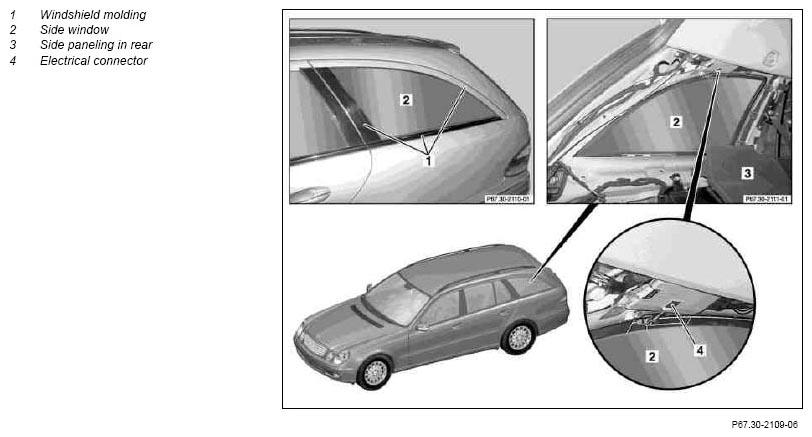

Fig 1: Identifying Rear Side Window Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove ornamental frame (1) from side window (2)		AR67.30-P-4020TA
2	Loosen side paneling in rear (3) and shim		AR68.30-P-4780T
3	Remove moldings from C-pillar		AR68.30-P-4490TA
4	Remove moldings from D-pillar		AR68.30-P-4495T
5	Disconnect left electrical connector (4)
6	Disconnect right electrical connector (4)	with code 889 Keyless Go, with code 860 TV tuner
7	Install in the reverse order
