Remove/install ornamental frame at side windows - AR67.30-P-4020TA

MODEL 211.2

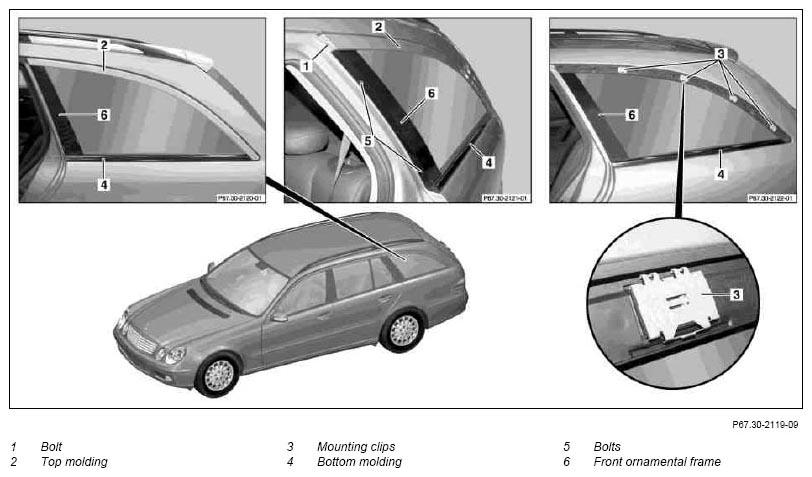

Fig 1: Identifying Side Windows Ornamental Frame & Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Open rear door
2	Unscrew screws (1)
3	Unclip top ornamental frame (2)	Start at front at the first three mounting clips (3)	*110589035900
4	Displace top ornamental frame (2) toward front and remove	Replace damaged mounting clips (3), in order to avoid a self loosening of the top ornamental frame (2). Installation:  Use liquid lubricant.	*BR00.45-Z-1010-06A
5	Unclip bottom ornamental frame (4) and remove		*110589035900
6	Unscrew bolts (5).
7	Remove front ornamental frame (6)	The front ornamental frame (6) can only be removed, if the bottom ornamental frame (4) has been removed.
8	Install in the reverse order

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
