Remove rear shelf - AR68.30-P-4581TX

MODEL 219.3

Shown with code (540) Electric sun shade for rear window

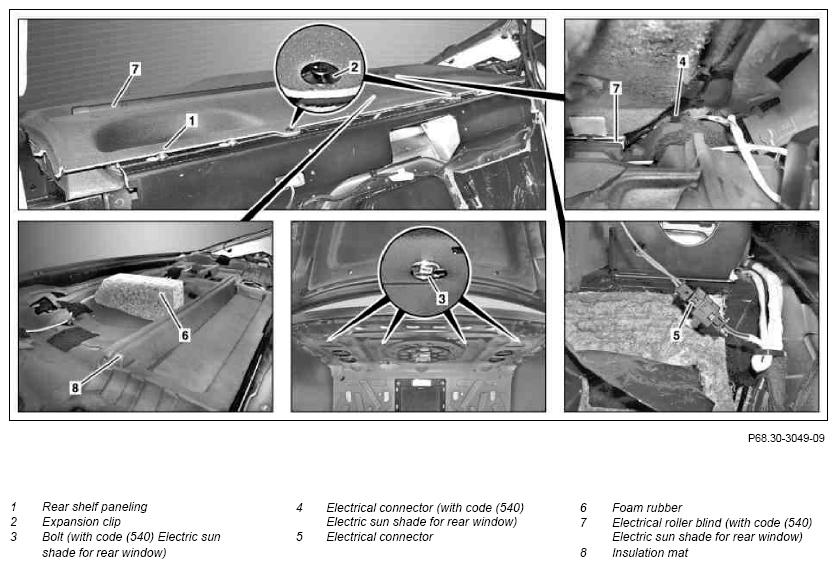

Fig 1: Identifying Rear Shelf Related Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

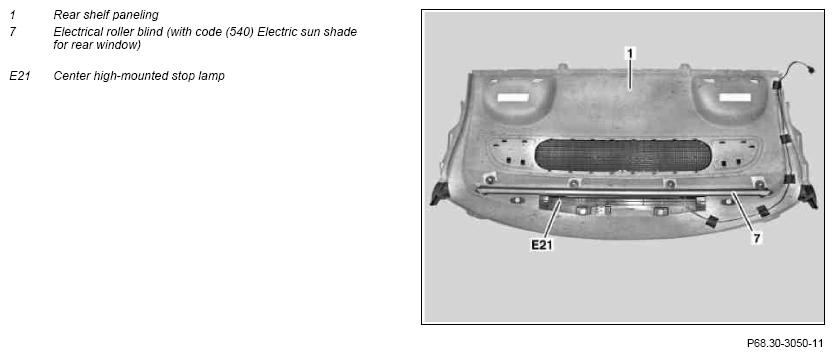

Fig 2: Identifying Rear Shelf Related Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Completely move both front seats toward front	See Operating Instructions
2	Remove paneling at both C-pillars		AR68.30-P-4490TX
3	Remove rear headrests		AR91.16-P-1770TX
4.1	Remove speaker in rear shelf	On vehicles with code (540) Electric sun shade for rear window, in combination with code (810) Sound system	AR82.62-P-7836TX
5	Remove expansion clips (2)
6.1	Remove screws (3)	On vehicles with code (540) Electric sun shade for rear window Accessible through luggage compartment.
7	Lift rear shelf paneling (1) and disconnect electrical connector (4) from electric roller blind (7) as well as electrical connector (5) for wiring harness from center high-mounted stop lamp (E21).	Electrical connector (4) only on equipment with code (540) electric sun shade for rear window
8.1	Lift rear shelf paneling (1) and remove foam rubber element (6)	On vehicles with code (540) Electric sun shade for rear window and without code (810) Sound system Foam rubber element (6) is glued on Glue on foam rubber element (6) with double-sided adhesive tape
9	Lift rear shelf paneling (1), pull toward front and remove	Observe insulating mat (8) below rear shelf paneling (1)
10.1	Remove electrical roller blind (7)	Only when replacing rear shelf paneling (1) on vehicles with code (540) Electric sun shade for rear window.	AR68.50-P-4600TX
11	Install in the reverse order
