Removing and installing loudspeakers in rear shelf - AR82.62-P-7836TX

MODEL 219.3 with CODE (810) Sound system

Shown with code (540) Electric sun shade for rear window

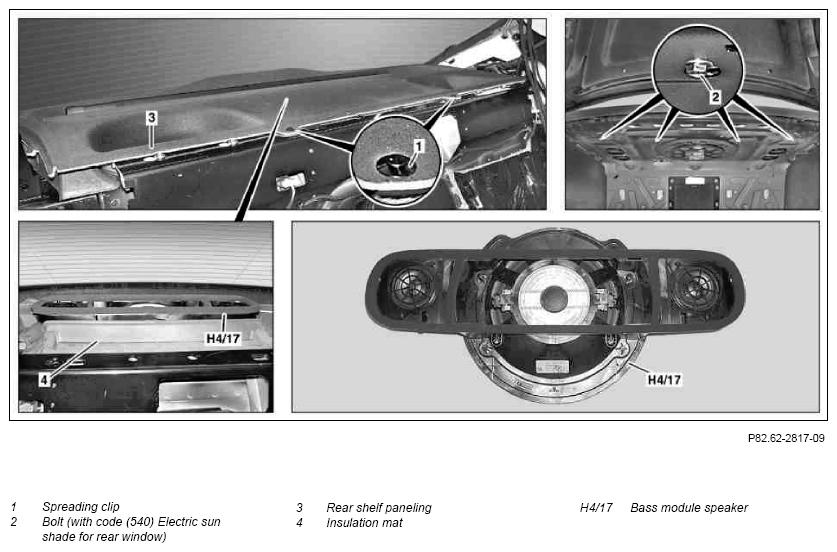

Fig 1: Identifying Rear Shelf Loudspeakers Remove/Install Components - Shown With Code 540

G10768586

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Completely move both front seats toward front	To protect the front seat backrests.
2	Remove rear seat backrest		AR91.12-P-1620TX
3	Remove left and right rear head restraint		AR91.16-P-1770TX
4	Remove left and right paneling from C-pillar		AR68.30-P-4490TX
5	Remove expanding clips (1)	Replace damaged expanding clips (1) with new ones.
6.1	Unscrew bolts (2)	On vehicles with code (540) Electric sun shade for rear window Access via luggage compartment.
7	Lift up rear shelf panel (3) and disconnect electrical connectors from bass module speaker (H4/17)
8	Lift up rear shelf panel (3) and rotate bass module speaker (H4/17) counterclockwise and take off of rear shelf toward front	Pay attention to sound deadening mat (4).
9	Install in the reverse order
