Disassemble/assemble front bumper - AR88.20-P-2050TX

MODEL 219.3

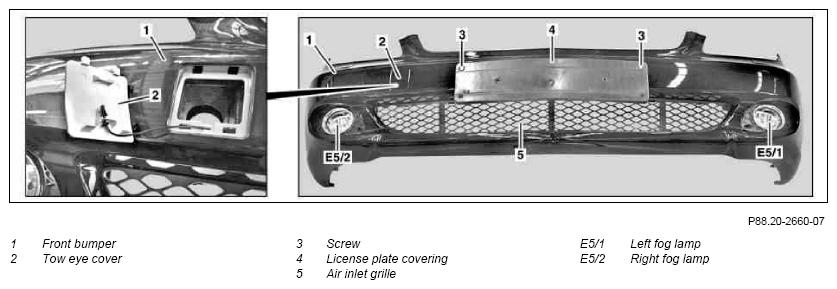

Fig 1: Identifying Front Bumper Disassemble/Assemble Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

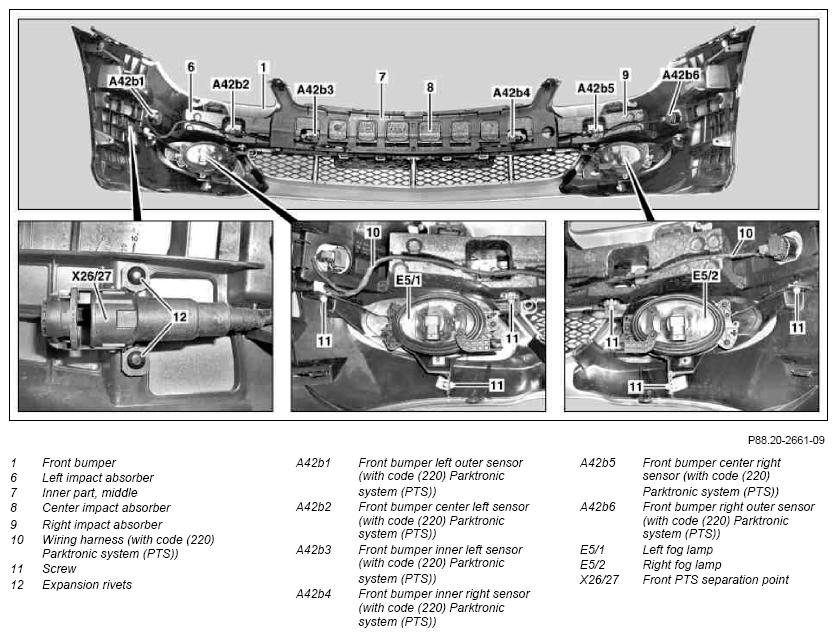

Fig 2: Identifying Front Bumper Disassemble/Assemble Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on left side of front bumper

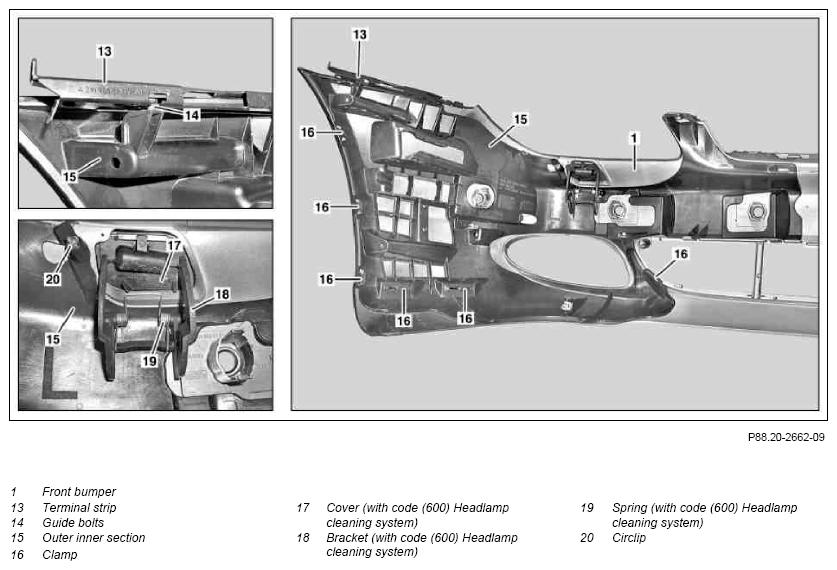

Fig 3: Identifying Front Bumper Disassemble/Assemble Components - Shown On Left Side Of Front Bumper

Courtesy of MERCEDES-BENZ USA

	Disassemble/assemble
1	Remove license plate.
2	Unscrew bolts (3) and remove license plate covering (4)
3	Unclip air inlet grate (5)
4	Remove tow eye cover (2)
5	Remove radiator paneling		AR88.40-P-4001TX
6	Remove front bumper (1).		AR88.20-P-2000TX
7.1	Remove sensor (A42b1, A42b2, A42b3, A42b4, A42b5 and A42b6) from front bumper (1)	Only with code (220) Parktronic system (PTS)	AR54.65-P-0001TX
8	Unclip inner center section (7) and remove
9.1	Remove expansion rivets (12), expose wiring harness (10) with front PTS separation point (X26/27) and remove	Only with code (220) Parktronic system (PTS)
10	Remove middle impact absorber (8), left impact absorber (6) and right impact absorber (9)
11	Unscrew bolts (11) and remove left cover with left fog lamp (E5/1) and right cover with right fog lamp (E5/2)
12	Remove left and right terminal strip (13) from guide bolts (14)
13.1	Remove spring (19), cover (17) and bracket (18)	Only with code (600) Headlamp cleaning system
14	Remove left and right outer inner section (15)	Do not remove circlip (20). Left and right outer inner sections (15) are slotted and can be pulled out below circlip (20). Check clips (20) for proper state, replace if necessary
15	Assemble in reverse order
