Remove/install front bumper - AR88.20-P-2000TX
MODEL 219.3

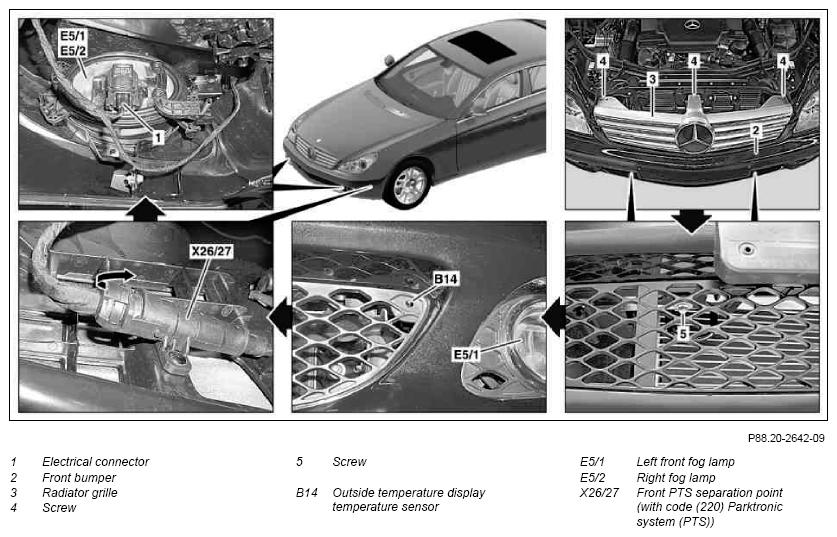

Shown on left side of bumper
| Remove/install | |||
| 1 | Open engine hood | AR88.40-P-1000TX | |

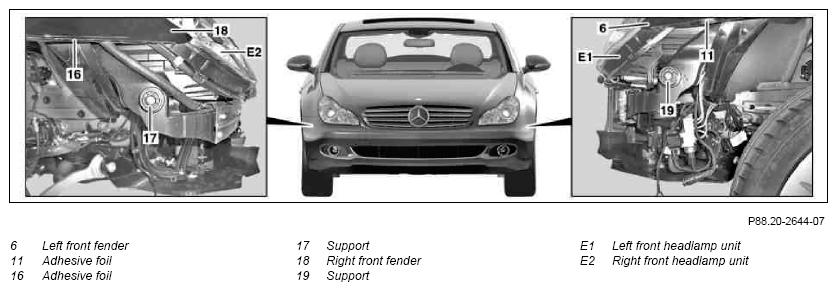

| 2 | Remove front section of fender liner from left front fender (6) and right front fender (18) | AR88.10-P-1310TX | |
| 3 | Unscrew bolts (4) from radiator grille (3) | ||
| 4 | Slightly pivot radiator grille (3) toward front, reach behind radiator grille (3) and unscrew bolts (5) from front crossmember | ||
| 5 | Unclip outside temperature display temperature sensor (B14) from front bumper (2) | ||
| 6.1 | Disconnect front PTS separation point (X26/27) | Only with code (220) Parktronic system (PTS) | |
| 7 | Disconnect electrical connector (1) from left front fog lamp (E5/1) and right front fog lamp (E5/2) | ||

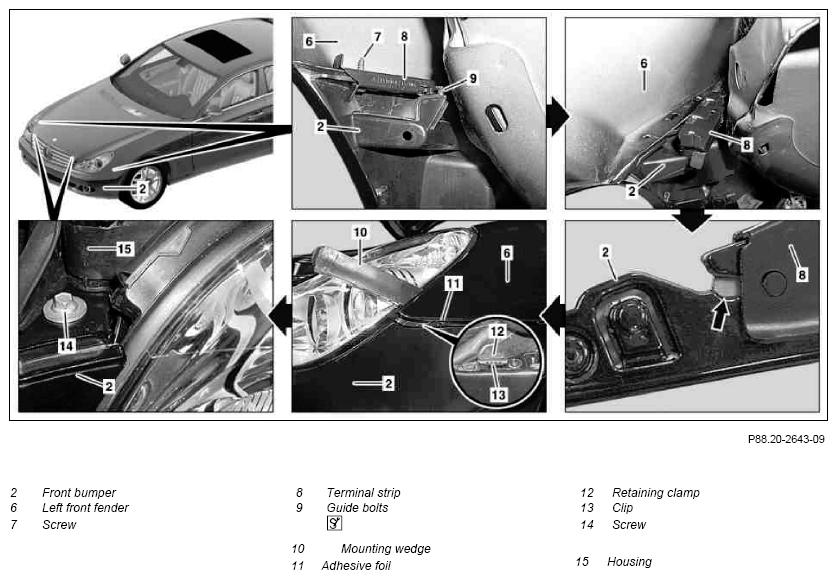

| 8 | Unscrew bolt (7) from left and right terminal strip (8) | ||
| 9 | Pivot left and right terminal strip (8) into guide pins (9) and press toward front into catch point (arrow) | ||
| 10 | Lift left front fender (6) and right front fender (18) out of retaining clip (12) with assembly wedge (10) | ||
| Figure | |||
| 11 | Remove bolt (14) | ||
| 12 | Remove front bumper (2) toward front with aid of helper | ||
| 13.1 | Disassemble front bumper (2) and assemble | Only when replacing front bumper (2). | AR88.20-P-2050TX |
| 14 | Install in the reverse order | ||
| 15 | Check gaps on front bumper (2), adjust if necessary | ||
| Gap dimensions on hoods, doors and lids | AR60.00-P-0700-01Y | ||
| Gap dimension between engine hood and bumper "Dimension C". | *BE60.00-P-1001-01O | ||
| Figure | |||
| 16.1 | Check Parktronic system (PTS) for proper function | Only with code (220) Parktronic system (PTS) |
|
| 17 | Check adjustment for left front fog lamp (E5/1) and right front fog lamp (E5/2), correct if necessary | ||
| Check and correct the adjustment of the headlamps | AP82.10-P-8260TX | ||
| 18 | Close engine hood |
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 219 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01O | Gap dimension | Engine hood to fender | Dimension "A" | mm | 3.5 (± 0.5) |
| Engine hood to headlamp | Dimension "B" | mm | 4.0 (± 0.5) | ||
| Engine hood to bumper | Dimension "C" | mm | 4.0 (± 0.5) | ||
| Engine hood to A-pillar | Dimension "Q" | mm | - | ||
| Fender/headlamps | Dimension "R" | mm | - | ||
| Bumper to headlamp (circumferential) | Dimension "S" | mm | - | ||
| Retaining rail, bumper to engine hood | Dimension "T" | mm | - | ||
| Retaining rail, bumper to engine hood | Dimension "U" | mm | - | ||
| See picture | AR60.00-P-0700-01Y | ||||
