Remove/install radiator paneling - AR88.40-P-4001TX

MODEL 219.3

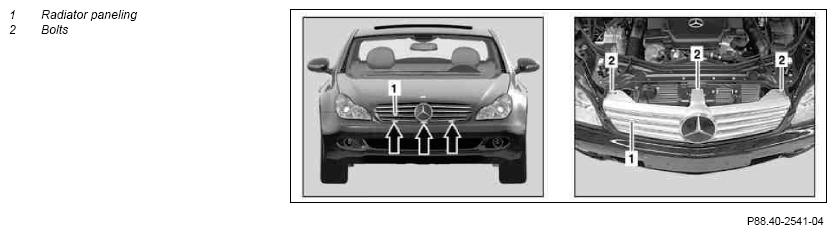

Fig 1: Identifying Radiator Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open engine hood	See Operating Instructions
2	Unscrew bolts (2)
3	Unlock radiator paneling (1) (arrows) and remove toward front	First install radiator paneling (1) in bumper at front.
4	Install in the reverse order
