Retrofit iPod interface - AZ82.60-P-0014TX

MODEL 219.3## 1# up to 2.3.08 except CODE (809) Model year 2009 except CODE (924) Bivalent natural gas drive with CODE (526) COMAND (without navigation) with CODE (527) COMAND APS (with navigation) with CODE (528) HIGH Class USA with CODE (530) COMAND APS USA (with navigation system)

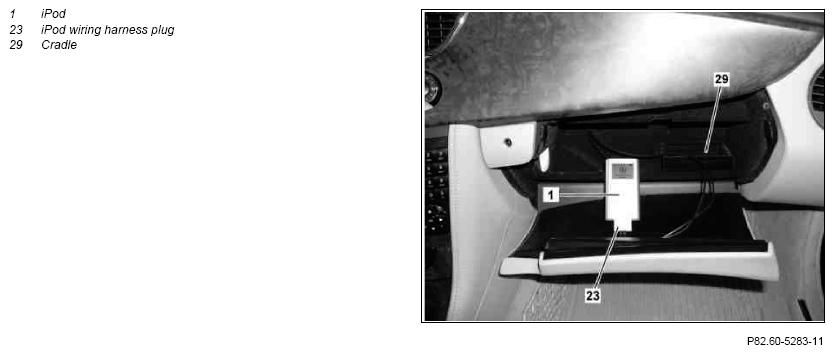

Fig 1: Identifying iPod And Cradle

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove left side paneling in trunk		AR68.30-P-4800TX
2	Remove SAM control unit with fuse and relay box from trunk and place to one side with electrical lines attached.	Vehicles without  code (809) Model year 2009 or up to production date 2.3.08	AR54.21-P-1258TX
		Vehicles with  code (809) Model year 2009 or  as of production date 3.3.08	AR54.21-P-1258TY
3	Remove right rear seat cushion		AR91.12-P-1020TX
4	Remove side bolster of right rear seat backrest
5	Release trim at right B-pillar in lower area until the cable duct is accessible		AR68.30-P-4700TX
6	Remove right front floor covering		AR68.20-P-2070TX
7	Remove COMAND operating, display and controller unit	Vehicles with  code (526) COMAND (without navigation) or with  code (527) COMAND APS (with navigation) or with  code (530) COMAND APS USA (with navigation) Vehicles with  code (528) HIGH Class USA	AR82.85-P-1000TX
	Install
8	Retrofit iPod interface wiring harness		AZ82.60-P-0001-01TX
	Notes on avoiding damage to fiber optic cables during repair work	Media Oriented System Transport (MOST)	AH82.60-P-0001-05TX
9	Retrofit iPod wiring harness	Rechargeable drill/screwdriver	AZ82.60-P-0001-02TX
10	Retrofit iPod interface		AZ82.60-P-0001-03TX
11	Glue cradle (29) into glove compartment with universal adhesive as shown	Universal adhesive	*BR00.45-Z-1003-02A
12	Connect iPod (1) to iPod wiring harness plug (23) in glove compartment
13	Place iPod (1) in cradle (29)
14	Install remaining parts onto vehicle
15	Carry out variant coding with the Diagnosis Assistance System	In vehicles without  one of the codes listed below: Code (380) Complete preinstallation for MB telephone "cell phone" Code (382) MB phone "cell phone" in armrest Code (386) Preinstallation for telephone "cell phone", UPCI [UHI] system Code (388) portable cellular telephone, UPCI system Code (389) Mobile phone preinstallation with universal interface, USA/Canada	AZ54.65-P-0001-08Q
16	Carry out function check	Check iPod functions as per iPod operating instructions in vehicle.
