Remove/install front floor coverings (right) - AR68.20-P-2070TX

MODEL 219.3

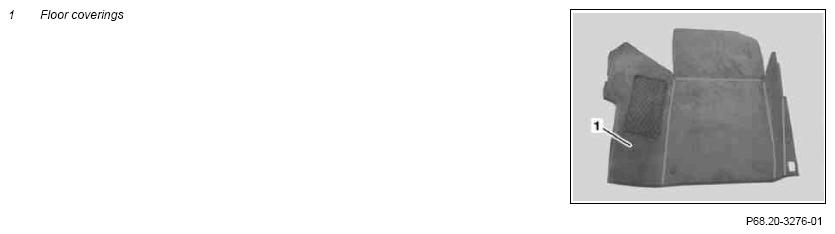

Fig 1: Identifying Front Floor Coverings (Right) Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

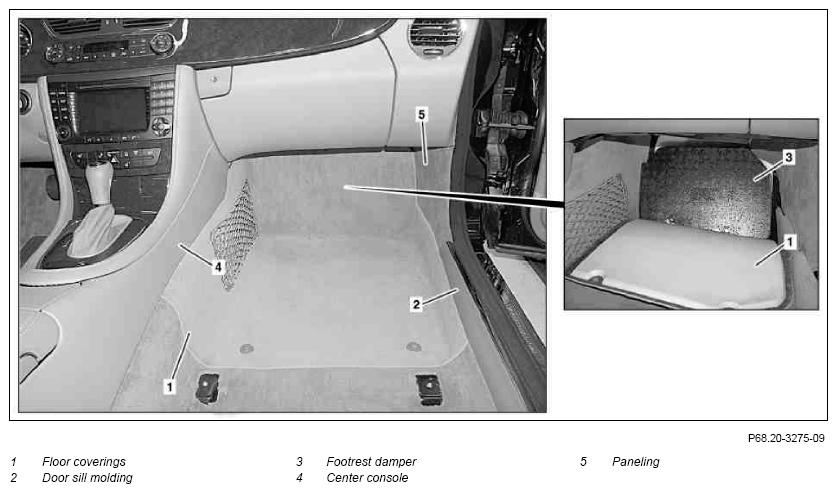

Fig 2: Identifying Front Floor Coverings (Right) Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Completely move right front seat toward rear	See Operating Instructions
2.1	Remove floor protection mat from footwell	If installed
3	Remove right door sill molding (2)		AR68.30-P-4100TX
4	Fold floor coverings toward rear in front area until footrest damper (3) is accessible
5	Remove footrest damper (3) from footrest and remove from footwell
6	Pull out floor coverings (1) below center console (4) and remove from vehicle	Ensure that floor coverings (1) is seated correctly below center console (4) and paneling (5)
7	Install in the reverse order
