Remove/install lower wishbone - AR33.20-P-0510TW

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211.08/28/09/29

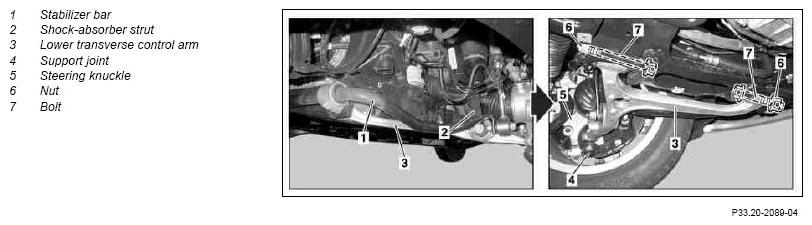

Fig 1: Identifying Lower Wishbone Components
G07279732Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

11.12.06 Self-locking nut, upper wishbone follower joint to steering knuckle Model 211 *BA33.20-P-1018-01A
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by body parts being jammed or crushed. Risk of injury  to skin and eyes caused by brake fluid spraying out at high pressure when working on the SBC brake system Deactivate SBC brake system using STAR DIAGNOSIS. AS42.46-Z-0001-01A
NOTES When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the parts will be affected
NOTES Notes on self-locking nuts and bolts All models AH00.00-N-0001-01A
NOTES Notes on AIRmatic Model 211 AH32.22-P-1000-02T
INSTALLATION IMPORTANT Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition.
1.1 Empty and fill front suspension strut using STAR DIAGNOSIS With Airmatic (semi-active air suspension), code 489
2 Remove air filter housing with air ducts IMPORTANT Pull air filter housing vertically upwards off the rubber retainers on the cylinder head covers.
IMPORTANTInstallation:  Rub the rubber retainers on the cylinder head covers and the sealing ring of the hot film mass air flow sensor in the air filter housing with liquid lubricant.
Model 211.087/092/287/292 AR09.10-P-1150TS
Lubricant *BR00.45-Z-1002-06A
3 Attaching engine supporting frame and lifting engine   AR33.10-P-0100-01T
For engine support frame see GOTIS
http://gotis.aftersales.mercedes-benz.com
4 Remove front wheel
REFER TO MAINTENANCE Remove/install wheels, rotate if necessary AP40.10-P-4050Z
5 Detach hexagon collar bolt of front axle shaft IMPORTANT On right or left front axle shaft. AR33.30-P-0620-05P
TORQUE SPECIFICATION Collar bolt, front axle shaft to front axle shaft flange *BA33.30-P-1003-02C
6 Detach front axle brake caliper from steering knuckle IMPORTANTRemoval:  Hang up brake caliper to one side. The brake hose does not have to be unscrewed from the brake caliper. AR42.10-P-0070T
7 Pry supporting joint (4) off steering knuckle (5) NOTES After prying off at the supporting joint screw the nut on again, otherwise the steering knuckle may fall down and become damaged. Only unscrew the nut when the steering knuckle is removed. AR33.20-P-0440-01VM
TORQUE SPECIFICATION Self-locking nut, supporting joint to steering knuckle *BA33.20-P-1017-01A
SPECIAL TOOL Puller *203589003300
SPECIAL TOOL Thrust piece *140589006300
8 Press track rod joint out of steering knuckle (5).   AR46.40-P-0200-02IW
TORQUE SPECIFICATION Self-locking nut, tie rod to steering knuckle *BA46.40-P-1001-01E
SPECIAL TOOL Thrust piece *140589006300
SPECIAL TOOL Puller *124589023300
9 Pry follower joint of upper transverse control arm off steering knuckle NOTES The follower joint must be removed, otherwise the follower joint is damaged by hard pulling or excessive angles. AR33.20-P-0500-01VM
TORQUE SPECIFICATION Self-locking nut, upper transverse control arm follower joint to steering knuckle *BA33.20-P-1018-01A
TORQUE SPECIFICATION Thrust piece *210589046300
SPECIAL TOOL Puller *202589023300
10 Detach link rod from torsion bar   AR32.20-P-0300-02VM
TORQUE SPECIFICATION Self-locking nut, link rod to torsion bar *BA32.20-P-1002-02B
11 Move steering knuckle (5) out of supporting joint (4)
12 Remove steering knuckle (5) and move the right front axle shaft or left front axle shaft from the front axle shaft flange IMPORTANT Do not damage the boots of the front axle shaft and supporting joint.
IMPORTANT To loosen the front axle shaft, if necessary screw in the hexagon collar bolt a few threads again and hammer out the front axle shaft slightly using a rubber hammer.
13 Detach lower engine compartment paneling   AR61.20-P-1105T
14 Remove torsion bar (1) on front axle   AR32.20-P-0300TW
15 Loosen front shock-absorber strut (2) on lower transverse control arm (3) and secure   AR33.20-P-0500-06VM
TORQUE SPECIFICATION Nut, shock-absorber strut to lower transverse control arm *BA32.25-P-1012-04B
16 Detach lower transverse control arm (3) from front axle carrier NOTES The bolt (7) must not  be twisted. It is essential to counterhold the bolt (7) when loosening the nut (6). Otherwise, when the repair kit is fitted, the fixing lugs for camber adjustment and caster adjustment in the rubber mount are sheared off.
TORQUE SPECIFICATION Self-locking nut, lower wishbone to front axle carrier *BA33.20-P-1010-01A
17 Install in the reverse order
18 Perform a wheel alignment check   AR40.20-P-0200T
FRONT AXLE SHAFT

Number Designation Model 211.08/09/28/29
BA33.30-P-1003-02C Collar bolt, front axle shaft to front axle shaft flange Stage 1 Nm 70
Stage 2 ∠° 90
WHEEL LOCATION, HUB

Number Designation Model 211.08/09/28/29
BA33.20-P-1010-01A Self-locking nut, lower wishbone to front axle carrier Nm 110
BA33.20-P-1017-01A Self-locking nut, supporting joint to steering knuckle Stage 1 Nm 70
Stage 2 ∠° 50
BA33.20-P-1018-01A Self-locking nut, upper wishbone follower joint to steering knuckle Stage 1 Nm 20
Stage 2 ∠° 90
TIE ROD

Number Designation Model 211.08/09/28/29
BA46.40-P-1001-01E Self-locking nut, tie rod to steering knuckle Stage 1 Nm 55
Stage 2 ∠° -
STRUTS

Number Designation Model 211.08/09/28/29
BA32.25-P-1012-04B Nut of shock-absorber strut to transverse control arm Nm 162
FRONT AXLE STABILIZER BAR

Number Designation Model 211.08/09/28/29
BA32.20-P-1002-02B Self-locking nut of connecting rod to torsion bar M10 Nm -
M10 1.5 Nm -
M12 1.5 Nm 95
M14 1.5 Nm -
Fig 2: Identifying Thrust Piece (140 589 00 63 00)
G07279733Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Puller (203 589 00 33 00)
G07279734Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Thrust Washer M 10x1.5 (210 589 04 63 00)
G07279735Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Puller (124 589 02 33 00)
G07279736Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Puller (202 589 02 33 00)
G07279737Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00 A 000 989 01 60
