Remove/install stabilizer bar on front axle - AR32.20-P-0300TW

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211.08/09/28/29

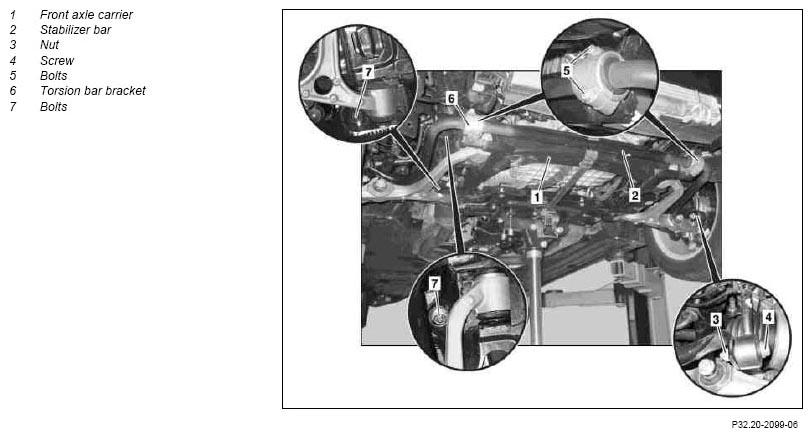

Fig 1: Identifying Front Axle Stabilizer Bar Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the parts will be affected
Installation	Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition.
1	Remove air filter housing with air ducts	Pull air filter housing vertically upwards off the rubber retainers on the cylinder head covers. Installation: Rub the rubber retainers on the cylinder head covers and the sealing ring of the hot film mass air flow sensor in the air filter housing with liquid lubricant. Lubricant paste	*BR00.45-Z-1002-06A
2	Remove cover over fuse box on left suspension strut	On vehicles with diesel engine
3	Mount engine hoist		AR33.10-P-0100-01T
		Use optionally: Engine lifting device Engine lifting fixture http://gotis.aftersales.mercedes-benz.com	*240589006100
4.1	Remove lower engine compartment paneling	On vehicles with gasoline engine	AR61.20-P-1105T
4.2	Remove soundproofing	On vehicles with diesel engine	AR94.30-P-5300T
5	Remove bolts of left and right front engine mounts from the front axle carrier		*BA22.10-P-1002-03A
6	Raise engine	Make sure when lifting out engine that no cables and lines are damaged and that engine does not hit against partition wall.
7	Remove nut (3) and remove screw (4)	Both sides of the vehicle.
			*BA32.20-P-1002-02B
8	Support front subframe (1)	When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the of the parts will be reduced.	AR33.10-P-0100-03T
9	Remove bolts (7) from front axle carrier (1)	The bolts are self-tapping, so the following points must be observed: Never retap thread in longitudinal member. Renew bolts. Use only genuine bolts (4 in total). When screwing in do not attach bolts at an angle Do not use an impact wrench. Observe tightening torque.
			*BA33.10-P-1005-01A
10	Lower the front axle carrier (1) until the bolts (5) are accessible	Do not subject steering coupling to tensile loads.
11	Remove bolts (5) and remove torsion bar holder (6)		*BA32.20-P-1008-02B
12	Take off torsion bar (2)
13	Install in the reverse order
14	Perform a wheel alignment check		AR40.20-P-0200T

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 211 with 4MATIC
BA22.10-P-1002-03A	Front engine mount to front axle carrier	Nm	35

FRONT AXLE STABILIZER BAR

Number	Designation			Model 211.08/09/28/29
BA32.20-P-1002-02B	Self-locking nut of connecting rod to torsion bar	M10	Nm	-
		M10x1.5	Nm	-
		M12x1.5	Nm	95
		M14x1.5	Nm	-
BA32.20-P-1008-02B	Bolt, torsion bar to torsion bar bracket		Nm	22

FRONT AXLE CARRIER

Number	Designation		Model 211.08/09/28/29
BA33.10-P-1005-01A	Bolt, front axle carrier to longitudinal member	Nm	120

Fig 2: Identifying Engine Lifting Fixture (240 589 00 61 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
