Pressing out and attaching follower joint at steering knuckle - AR33.20-P-0500-01VM

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODIFICATION NOTES

11.12.06

Self-locking nut, upper wishbone follower joint to steering knuckle

Model 211

*BA33.20-P-1018-01A

WHEEL LOCATION, HUB

Number	Designation			Model 211.08/09/28/29
BA33.20-P-1018-01A	Self-locking nut, upper wishbone follower joint to steering knuckle	Stage 1	Nm	20
BA33.20-P-1018-01A		Stage 2	∠°	90

Fig 1: Identifying Puller (202 589 02 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Thrust Washer M 10x1.5 (210 589 04 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Pushing off

Unscrew self-locking nut (1) of supporting joint (8) to transverse control arm (6).
Mount thrust piece.
Use puller (09) to pry off supporting joint (8).
Remove puller (09) and thrust piece.

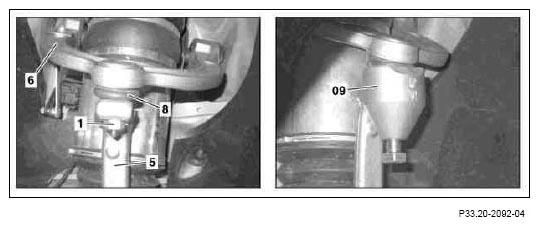

Fig 3: Prying Off Supporting Joint
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Install
Clean tapered connection.
The cone and thread must be free of grease and oil
Replace self-locking nut and tighten .
