Remove/install rack-and-pinion steering - AR46.20-P-0600IW

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211.08/28/09/29, 220.08/18

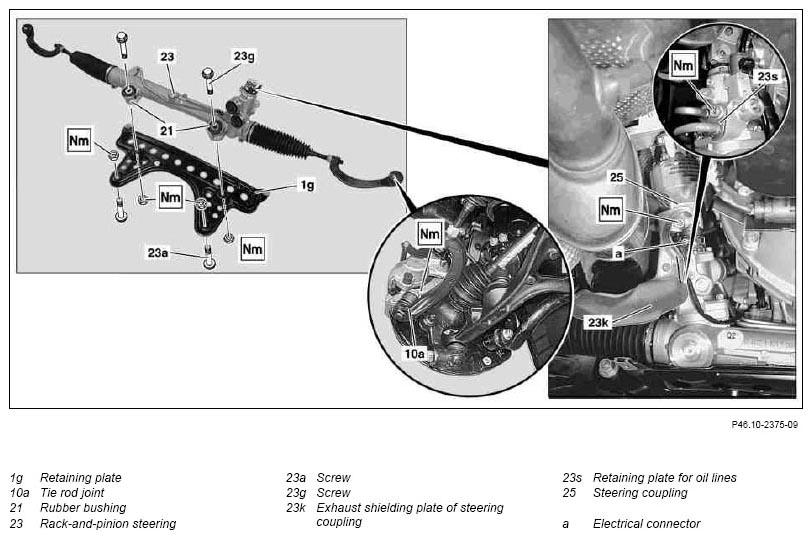

Fig 1: Identifying Rack-And-Pinion Steering Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 220

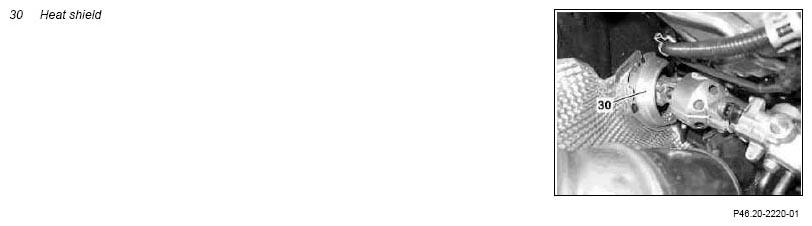

Fig 2: Identifying Heat Shield

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

28.2.07

Self-locking nut, steering joint to rack-and-pinion steering

Model 220.083/084/087/183/184/187

*BA46.10-P-1002-01E

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Deactivate easy entry/exit function	Vehicles with memory package (driver seat, steering column, mirrors) code 275 Otherwise the driver seat and steering wheel move to a different position, e.g. when the driver door is opened/closed. The upper frame may be damaged when the holding device is installed. It is switched off using the buttons on the steering wheel in the "Comfort" menu on the multifunction display, see vehicle owner's manual.
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
2	Open engine hood	Model 211	AR88.40-P-1000T
		Model 220	AR88.40-P-1000M
3	Extract fluid out of the power steering pump's fluid reservoir		*210589007100
4	Remove front wheels
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
5.1	Detach lower engine compartment paneling	Model 211 with gasoline engine	AR61.20-P-1105T
		Model 220	AR61.20-P-1105M
5.2	Remove soundproofing	Model 211.084/089/284/289	AR94.30-P-5300T
6	Pry off tie rod ball joints (10a) at right and left from steering knuckles		AR46.40-P-0200-02IW
			*140589006300
			*124589023300
			*BA46.40-P-1001-01E
7	Detach high pressure and return line of rack-and-pinion steering (23) from the front axle carrier
8	Detach electrical connector (a) from control valve of rack-and-pinion steering (23)	For model 220, unclip line on exhaust shielding plate of steering coupling (23k) and on front axle carrier.
9	Detach exhaust shielding plate of steering coupling (23k) on control valve of rack-and-pinion steering (23)	Three bolts.
10	Remove heat shield (30) of steering coupling (25)	Model 211
11	Remove lower bolt of steering coupling (25) on rack-and-pinion steering (23)	To do so rotate steering coupling into corresponding position.	*BA46.10-P-1002-01E
12	Turn steering wheel to central position (front wheels in straight ahead position) and secure with the retaining device	On a disengaged steering coupling (25) the steering wheel should not be turned because the spiral contact coil will be destroyed.	*129589012100
13	Pull steering coupling (25) carefully out of the control valve of the rack-and-pinion steering (23) (predetermined fracture point on control valve)	Do not use force (hammer impact, strong lever action). Installation: Turn rack-and-pinion steering to center position and install steering coupling brake fluid reservoir	AR46.20-P-0600-01P
14	Remove retaining plate of oil lines (23s) from rack-and-pinion steering (23) and pull out oil lines	Seal off line connections with plugs. Installation: Replace O-rings to prevent leaks on steering system.	*BA46.20-P-1006-01E
			*BA46.20-P-1001-01F
			*129589009100
15	Remove vehicle jack socket on front axle carrier
16	Remove support bracket (1g) of rack-and-pinion steering (23)	Remove bolts (23g).	*BA46.20-P-1003-01E
			*BA46.20-P-1002-01F
17	Prop up rack-and-pinion steering (23)
18	Remove support bracket (1g) from front axle carrier	Remove bolts (23a) for this step.	*BA46.20-P-1004-01E
			*BA46.20-P-1004-01F
19	Remove rack-and-pinion steering (23)	Installation: The bolts (23a, 23g), nuts and contact surfaces of the support bracket (1g) and the front axle carrier must be free of oil, grease and preservation agent. Heating causes the lubricants to melt and spread, which may cause the bolted connections to work loose.
	Evaluating steering rack when repairing accident vehicles		AH46.20-P-9409-01A
20	Check rubber mount (21) of rack-and-pinion steering mounting for damage	Replace if necessary: ↓ Remove rubber mount of rack-and-pinion steering fastening	AR46.20-P-0600-02I
21	Check protective cap on input shaft of rack-and-pinion steering (23) for damage	Model 211 Replace if necessary: ↓ Remove/install protective cap for input shaft on steering gear.	AR46.20-P-0004P
22	Install in the reverse order
23	Fill power steering pump	Model 211 except 211.087/090/092/287/290/292	AR46.30-P-0010P
		Model 211.087/090/092/287/290/292	AR46.30-P-0010TS
		Model 220 with Active Body Control (ABC), code 487, except special protection version, code 979, except light armoring, code Z04, except top protection, code Z07	AR46.30-P-0010N
		Model 220 except Active Body Control (ABC), code 487, with special protection version, code 979, with light armoring, code Z04, with top protection, code Z07	AR46.30-P-0010B
24	Check steering for function and leaks	There is a grease cushion under the cover cap. A slight escape of grease is to be regarded as normal and should not be confused with leakage.
25	Check front axle toe and adjust if necessary	When installing new parts. see: ↓ Perform a wheel alignment check Model 211	AR40.20-P-0200T
		Model 220 except with special protection version, code 979, except top protection, code Z07	AR40.20-P-0200I
		Model 220 with special protection version code 979, with top protection code Z07	AR40.20-P-0200MB

TIE ROD

Number	Designation			Model 220.083/084/087/183/184/187	Model 211.08/09/28/29
BA46.40-P-1001-01E	Self-locking nut, tie rod to steering knuckle	Stage 1	Nm	55	55
		Stage 2	∠°	-	-

STEERING SHAFT

Number	Designation		Model 220.083/084/087/183/184/187	Model 211.08/09/28/29
BA46.10-P-1002-01E	Safety screw and steering coupling locknut to rack-and-pinion steering	Nm	18	18

STEERING GEAR

Number	Designation			Model 220.083/084/087/183/184/187
BA46.20-P-1003-01E	Bolted connection, rack-and-pinion steering to retaining plate	Stage 1	Nm	45
		Stage 2	∠°	60
BA46.20-P-1004-01E	Bolted connection, supporting plate to front axle carrier	Stage 1	Nm	45
		Stage 2	∠°	30
BA46.20-P-1006-01E	Bolt on clamp plate, high-pressure line/return line to rack-and-pinion steering		Nm	20

STEERING GEAR

Number	Designation			Model 211.08/09/28/29
BA46.20-P-1001-01F	Bolt, oil line retaining plate to rack-and-pinion steering		Nm	20
BA46.20-P-1002-01F	Bolted connection, rack-and-pinion steering to front axle carrier	Stage 1	Nm	50
		Stage 2	∠°	60
BA46.20-P-1004-01F	Bolted connection, supporting plate to front axle carrier	Stage 1	Nm	50
		Stage 2	∠°	30

Fig 3: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Thrust Piece (140 589 00 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Puller (124 589 02 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Holding Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
