Remove/install protective cap for input shaft on steering gear - AR46.20-P-0004P

MODEL 169, 171, 172, 203, 204, 207, 209, 211, 212, 218, 230, 245 rack-and-pinion steering removed

Shown on model 203, left-hand drive vehicle

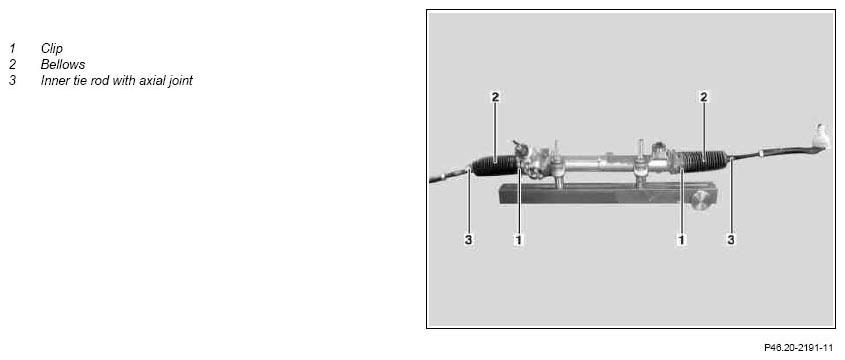

Fig 1: Identifying Clip, Bellows And Inner Tie Rod With Axial Joint

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

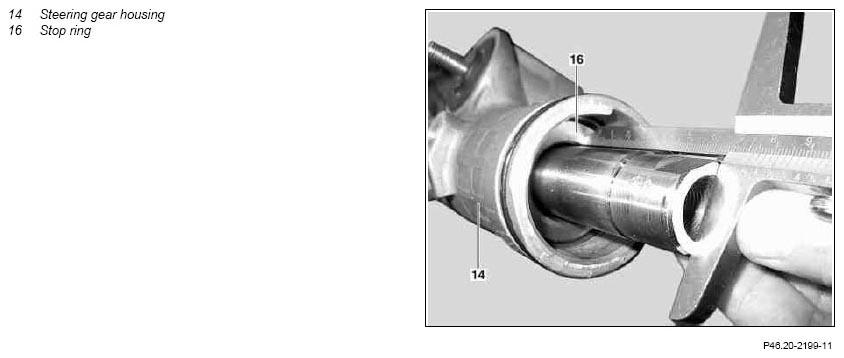

Fig 2: Identifying Steering Gear Housing And Stop Ring

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

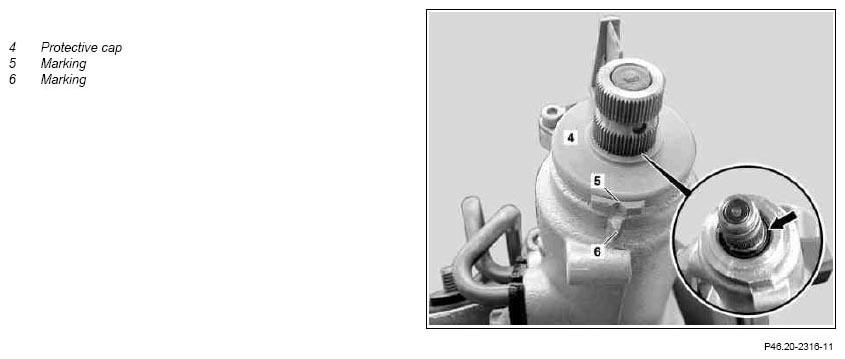

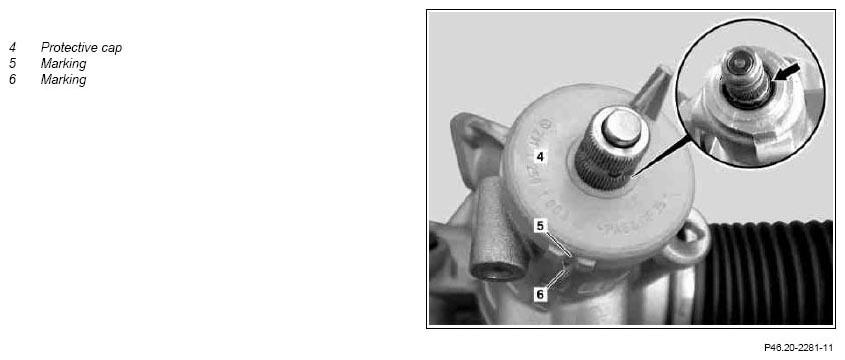

Fig 3: Identifying Protective Cap And Marking - Model 169 Up To 30.3.05

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 169 up to 30.3.05, left-hand drive vehicle

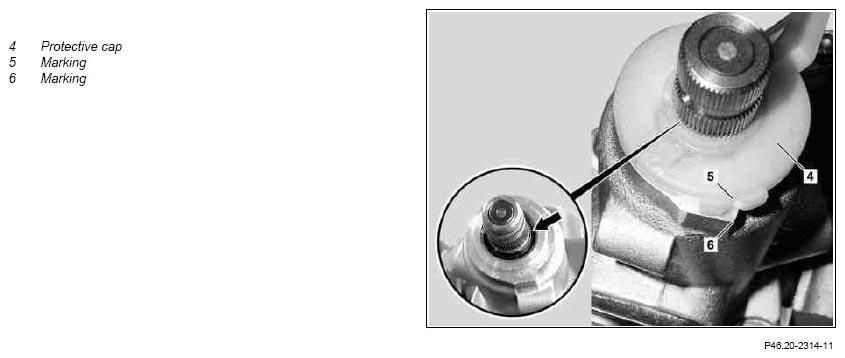

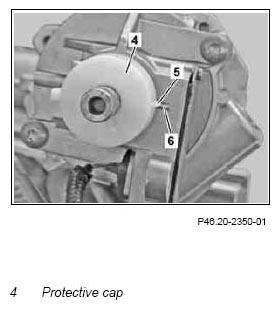

Fig 4: Identifying Protective Cap And Marking - Model 169, 245

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 169, 245, right-hand drive vehicle

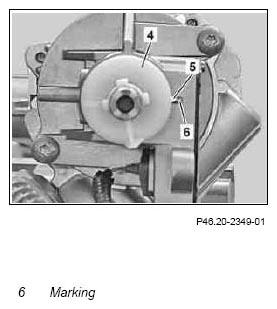

Fig 5: Identifying Protective Cap And Marking - Model 169 As Of 31.3.05, Model 245

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 169 as of 31.3.05, model 245, left-hand drive vehicle

Shown on model 203, left-hand drive vehicle

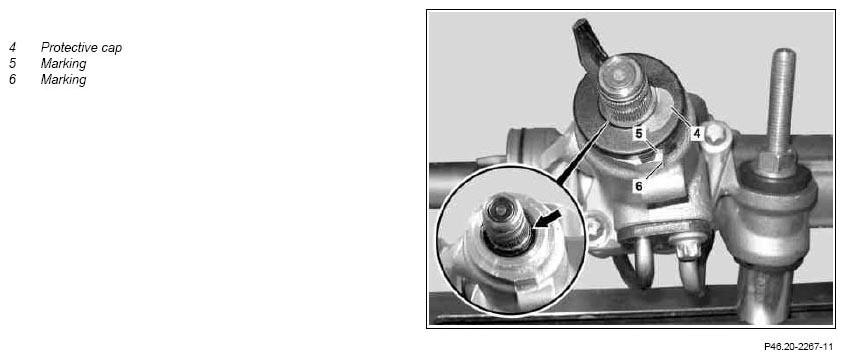

Fig 6: Identifying Protective Cap And Markings - Model 203, Left-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 203, right-hand drive vehicle

Fig 7: Identifying Protective Cap And Markings - Model 203, Right-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211, left-hand drive vehicle

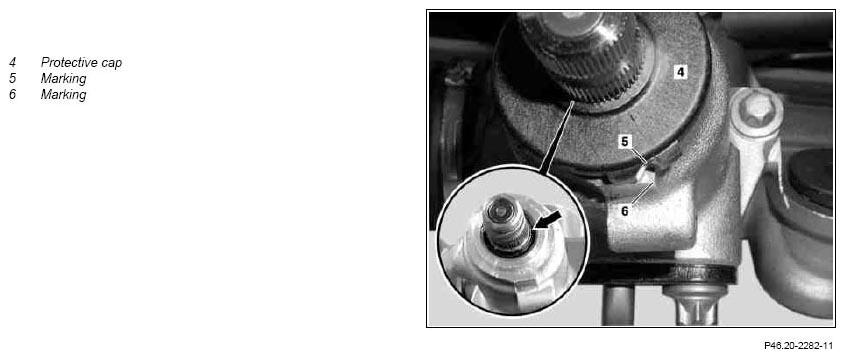

Fig 8: Identifying Protective Cap And Markings - Model 211, Left-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211, right-hand drive vehicle

Fig 9: Identifying Protective Cap And Markings - Model 211, Right-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 207, 212, 230,

Shown on model 230, left-hand drive vehicle

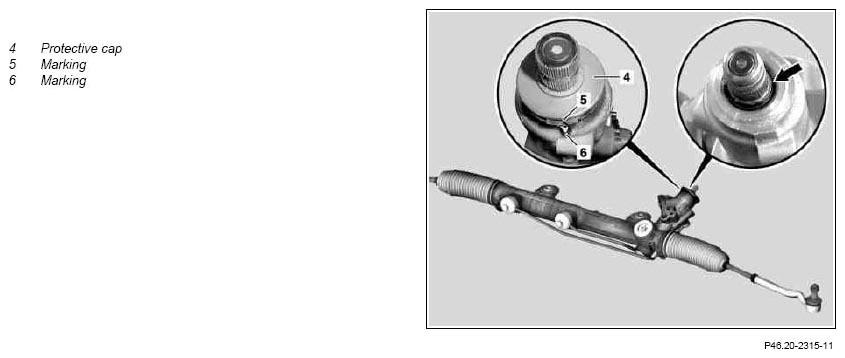

Fig 10: Identifying Protective Cap And Markings - Model 230, Left-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 218, left-hand drive vehicle

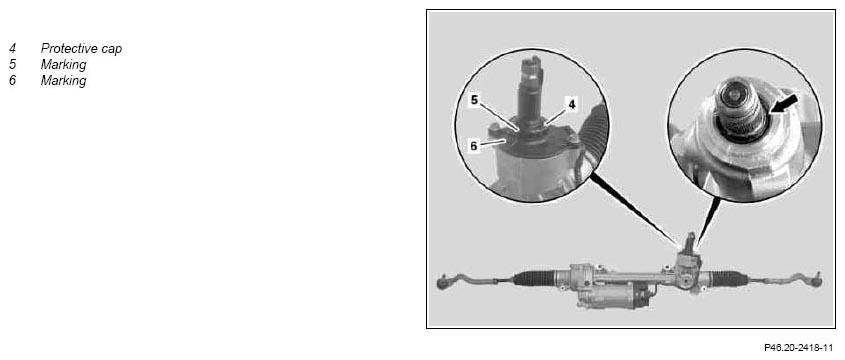

Fig 11: Identifying Protective Cap And Markings - Model 218, Left-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 230, right-hand drive vehicle

Fig 12: Identifying Protective Cap And Markings - Model 230, Right-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
1	Mount the rack-and-pinion steering onto steering gear housing support	Make sure that the workplace is clean when carrying out the work described below and while performing repairs. Only the specified tools may be used. Before starting the repair work, remove any loose dirt from the steering gear without using cleaning agents.
		Steering gear housing support	*221589013100
2	Detach clamps (1) from both boots (2)
3	Press clamps together on inner tie rods with axial joints (3) and slide boots (2) towards tie rod end
4	Detach left and right inner tie rod with axial joint (3)	Do not use force (hammer blows, excessive leverage). Otherwise the inner tie rods with axial joints (3) may be damaged.
		Open-end wrench (Model 171, 172, 203, 204.0/2, 207, 209, 211, 230)	*201589000100
		Plug in open-end wrench (Model 204.9, 212, 218)	*221589020900
		Open-end wrench bit (Model 169, 245)	*169589000100
5	Move steering rack to center position	Use depth gauge to determine center position. Balance out the gaps from the end of the steering rack to the stop ring (16) in the steer jacket (14) on both sides of the steering rack.
6	Detach protective cap (4)
	Install
7	Grease gap between input shaft and control head (arrow)	Except model 169, 245 Apply grease using fingers. Do not use any other aid.
		Renolit JP1619 special grease	*BR00.45-Z-1067-06A
8	Fit protective cap (4)	Marking (5) must line up exactly with marking (6). Otherwise the Electronic Stability Program (ESP(r)) may malfunction. Model 169, 245: There are various versions of the protective cap (4). The same version as the one fitted must always be reinstalled.
	Modified rack-and-pinion steering	Model 169 as of 31.3.05	BT46.20-P-0600-01AK
	Checking
9	Check center steering position on steering gear		AR46.20-P-3015P
10	Mount left and right inner tie rod with axial joint (3)	Do not use force (hammer blows, excessive leverage). Otherwise the inner tie rod with axial joint (3) may be damaged.
		Model 171, 172, 203, 209, 211, 230	*BA46.40-P-1003-01E
		Model 169, 245	*BA46.40-P-1003-01J
		Model 204, 207, 212, 218	*BA46.40-P-1003-01N
		Open-end wrench (Model 171, 172, 203, 204, 207, 209, 211, 230, except 204.9)	*201589000100
		Plug in open-end wrench (Model 204.9, 212, 218)	*221589020900
		Open-end wrench bit (Model 169, 245)	*169589000100
11	Slide boots (2) onto steering housing (14) and position	Model 169, 230, 245
		Model 171, 172, 203, 204, 207, 209, 211, 212, 218	AR46.40-P-0400-02CW
12	Mount clamps (1) of both bellows (2)	Replace clamps (1). Note position of clamps (1). Model 169, 171, 203, 209, 211, 230, 245
		Model 172, 204, 207, 212, 218	AR46.40-P-7200-01EW
13	Detach rack-and-pinion steering from steering gear housing support

Fig 13: Identifying Steering Gear Housing Support (221 589 01 31 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 14: Identifying Open End Wrench (201 589 00 01 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 15: Identifying Open-End Wrench Bit (169 589 00 01 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 16: Identifying Plug In Open-End Wrench (221 589 02 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
