Check and adjust center steering position on steering gear - AR46.20-P-3015P

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 169, 171, 203, 204, 207, 209, 211, 212, 230, 245

Shown on model 203 left-hand drive vehicle

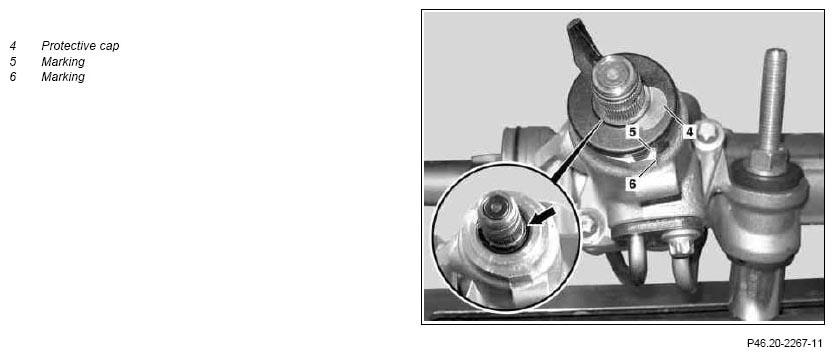

Fig 1: Identifying Protective Cap And Markings
G07196135Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

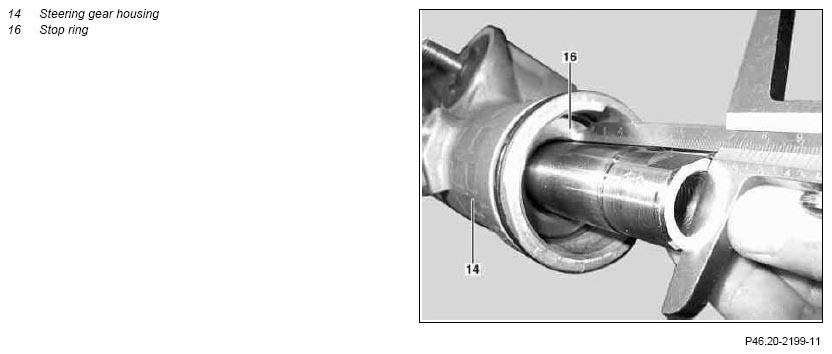

Fig 2: Identifying Steering Gear Housing And Stop Ring
G07196136Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
INSPECT Check
1 Mount the inner tie rod with axial joint IMPORTANT Only screw in finger-tight on the left and right side.
2 Twist the steering gear at the input shaft once to the left and right IMPORTANT Twist the steering gear all the way.
3 Adjust the steering gear to the marking (5) and marking (6) NOTES Marking (5) must match marking (6) exactly otherwise a malfunction of the Electronic Stability Program (ESP) can occur.
4 Detach inner tie rod with axial joint on both sides
5 Use a depth gauge to compare the distances from the end of the gear rack to the stop ring (16) in the steer jacket (14) on both sides NOTES If the distances are not the same, the protective cap (4) must be mounted again. As otherwise the Electronic Stability Program (ESP) may malfunction:
↓
Remove/install protective cap for input shaft on steering gear AR46.20-P-0004P
